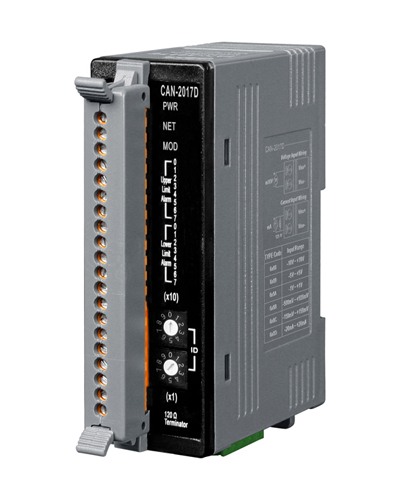

ICP DAS CAN-2017D - 8 Channel of 16 bit Current and Voltage Analog Input
by ICP DAS
|
|
|
|
DeviceNet Slave Module of 8-channel Differential Analog Input (Current Input). Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F)
|
|
|
Best suited for embedded networks dealing with machine controlling in aerial industry, medical field, factory automation, remote data acquisition, packaging machine control, environment monitoring, the CAN-2017D is the ideal DeviceNet device to create a robust system to meet your needs.
The CAN-2017D can access and relay back analog input status. Configuration settings can be set through the DeviceNet EDS file.
| DeviceNet Interface |
| DeviceNet Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5 |
| DeviceNet Subscribe |
Group 2 Only Server |
| Connection Supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O |
| Node ID |
0-63 selected by rotary switch |
| Baud Rate (bps) |
125 kbps, 250 kbps, 500 kbps |
| Terminator Resistor |
Switch for 120 Ω terminator resistor |
| Connector |
Node Guarding protocol / Heartbeat Producer |
| EDS File |
5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+) |
| EDS file |
Yes |
| Analog Input |
| Channels |
8 |
| Input Type |
±10V, ±5V, ±1V, ±500mV, ±150mV, ±20mA,( External 125 Ohm Resistor Required) |
| Resolution |
16-bit |
| Sample Rate |
10 Sample/Sec (Total) |
| Accurancy |
±0.1% FSR |
| Zero Drift |
±10 μV/ °C |
| Span Drift |
±25 ppm/ °C |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedence |
>2 MΩ |
| Individual Channel Configuration |
Yes |
| Over Voltage Protection |
240 Vrms |
| ESD Protection |
±4kV, Contact for each terminal |
| Intra-module Isolation, Field-to-Logic |
3000 VDC |
| LED |
| Status LED |
PWR LED, NET LED, MOD LED |
| Terminal Resistor LED |
1 LED as terminal resister Indicator |
| Alarm LED |
8 LEDs as over Upper Limit Indicators
8 LEDs as under the Lower Limit Indicators |
| Power |
| Power Supply |
Unregulated +10 ~ +30 VDC |
| Power Consumption |
2.0 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 99 mm x 78 mm ( W x L x H ) |
| Environment |
| Operating Temp. |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temp. |
-30°C ~ +80°C (-22°F ~ +176°F) |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
