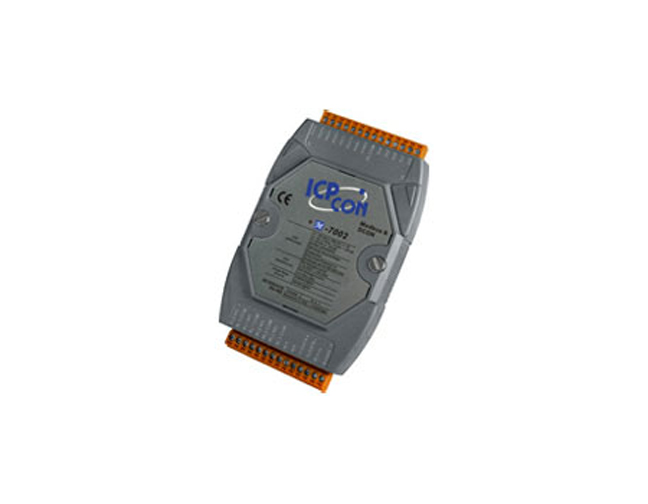

M-7002 - Data Acquisition Module with Analog Input, Digital Input and Relay Output, communicable over RS-485 and Modbus RTU by ICP DAS
|
|
|
4-channel Analog Input, 5-channel Digital Input and 4-channels Relay Output
Module. Supports Voltage Input and Current Input, communicable over Modbus RTU,
RS-485 and DCON. Comes with free EZ Data Logger software for data logging.
Supports operating temperatures from -25 to 75C (-13F ~ 167F).
|
|
|
The M-7002 is a 16-bit, 4-channel differential analog inputs 5-channel
digital inputs and 4-channels for relay output. All of its channels are Form A
type relay module that provides programmable input range on all analog channels
(+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20
mA) and digital output can be set alarm output with shortcircuit protection and
overload protection. Each analog channel is allowed to configure an individual
range and has 240 Vrms high overvoltage protection. Jumper selectable for
voltage or current input. The sampling rate of M-7002 is changeable; there are
fast mode and normal mode for your consideration. M-7002 also has qualification
for 4 kV ESD protection as well as 2500 VDC intra-module isolation.
- Voltage and Current Inputs
- +/-240 Vrms Overvoltage Protection
- High Resolution: 16 bit
- 2500 VDC Intra-Module Isolation
- Sink and Source Type Digital Inputs
- Photocouple Isolation
- Support Relay Outputs
- DIN-Rail Mountable
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
Analog Input |
Channel |
4 |
Wiring |
Differential |
Input Range |
+/-150 mV, +/-500 mV, +/-1 V , +/-5 V, +/-10 V
+/-20 mA , 0~20 mA, 4~20 mA (Jumper selectable) |
Resolution |
12/16-bit |
Accuracy |
Normal Mode |
0.1% |
Fast Mode |
0.5% |
Sampling Rate |
Normal Mode |
10 Hz |
Fast Mode |
60 Hz |
Input Impedance |
Voltage |
2 M |
Currnet |
139 Ω |
Common Voltage Protection |
+/-200 VDC |
Individual Channel Configuration |
Yes |
Overvoltage Protection |
240 Vrms |
Digital Input/Counter |
Channel |
5 |
Contact |
Wet |
Sink/Source (NPN/PNP) |
Sink/Source |
On Voltage Level |
10 ~ 50 VDC |
Off Voltage Level |
+4 VDC Max. |
Counter (50 Hz, 16-bit) |
Yes |
Input Impedance |
10 kΩ |
Overvoltage Protection |
+/-70 VDC |
Isolation Voltage |
3750 VDC |
Relay Output |
Channel |
4 |
Type |
Power Relay (Form A) |
Contact Rating |
5 A @ 250 VAC
5 A @ 30 VDC |
Surge Strength |
3000 VDC |
Operate Time |
6 ms |
Release Time |
3 ms |
Mechanical Endurance |
2 × 107 ops. |
Electrical Endurance |
105 ops. |
Power-on Value |
Yes |
Safe Value |
Yes |
Communication |
Interface |
RS-485 |
Format |
N, 8, 1 |
Baud Rate |
1200 ~ 115200bps |
Protocol |
DCON Modbus/RTU |
Watchdog |
Yes, Module, Communication (Programmable) |
LED Indicator/Display |
System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
I/O LED Indicator |
- |
7-Segment LED Display |
Yes |
Isolation |
Intra-Module Isolation, Field-to-Logic |
2500 VDC |
EMS Protection |
ESD (IEC 61000-4-2) |
+/-4 kV |
EFT (IEC 61000-4-4) |
+/-4 kV |
Surge (IEC 61000-4-5) |
+/-3 kV |
Power |
Reverse Polarity Protection |
Yes |
Input Voltage Range |
10 ~ 30 VDC |
Consumption |
1.8 W |
Mechanical |
Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
Installation |
DIN-Rail or Wall Mounting |
Environment |
Operating Temperature |
-25 ~ +75°C |
Storage Temperature |
-40 ~ +85°C |
Humidity |
10 ~ 95% RH, Non-condensing |
|
