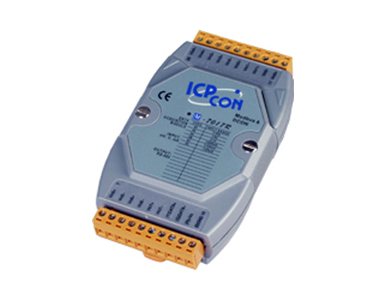

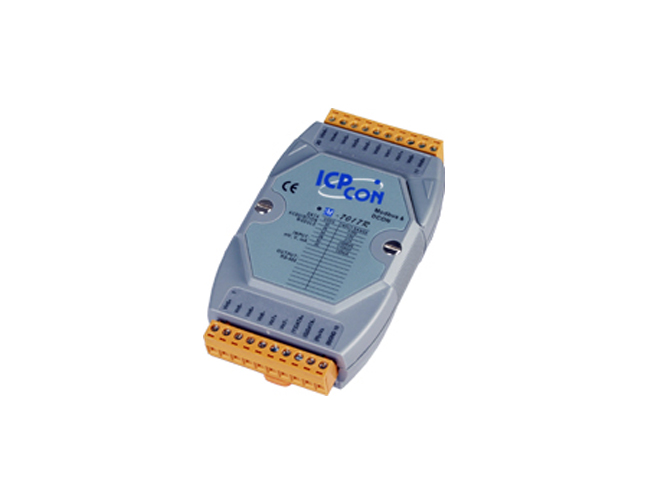

M-7017R - 8 Channel Voltage Input & Current Input Analog Input Data Acquisition Module, communicable over Modbus RTU and RS-485
by ICP DAS
|
|
|
|
8 Channel Voltage Input & Current Input Analog Input Data Acquisition Module,
communicable over Modbus RTU and RS-485. M-7017R has High Over Voltage
Protection
|
|
|
|
Analog Input |
|
Input Channels |
8 differential |
|
Input Type |
±150mV, ± 500mV, ± 1V, ± 5V, ± 10V and ± 20mA (requires optional
external 125 Ω resistor) |
|
Resolution |
16-bit |
|
Sampling Rate |
60/10 Samples / Second (total) |
|
Accuracy |
±0.1% |
|
BandWidth |
13.1 Hz |
|
Drift |
± 10uV/°C |
|
Input Impedance |
2Ω |
|
Common Mode Rejection |
86dB min |
|
Normal Mode Rejection |
None |
|
Over voltage Protection |
240Vrms |
|
Intra-module Isolation, Field to Logic |
3000 VDC |
|
Interface |
|
Interface |
RS-485 |
|
Format |
N, 8, 1 |
|
Baud Rate |
1200 ~ 115200bps |
|
LED Display |
| 1
LED |
As Power / Communication Indicator |
|
1 LED |
Power |
|
Input |
+10 to +30VDC |
|
Power Consumption |
1.3W |
|
Protocol |
|
Support Modbus and DCON Protocol |
Yes |
|
Watchdog |
Yes, Module, Communication (Programmable over DCON) firmware version
B300 and later |
|
Environment |
|
Operating temperature |
-25 to 75°C |
|
Storage temperature |
-40 to 85°C |
|
Humidity |
5 to 95% RH, non-condensing |
|
