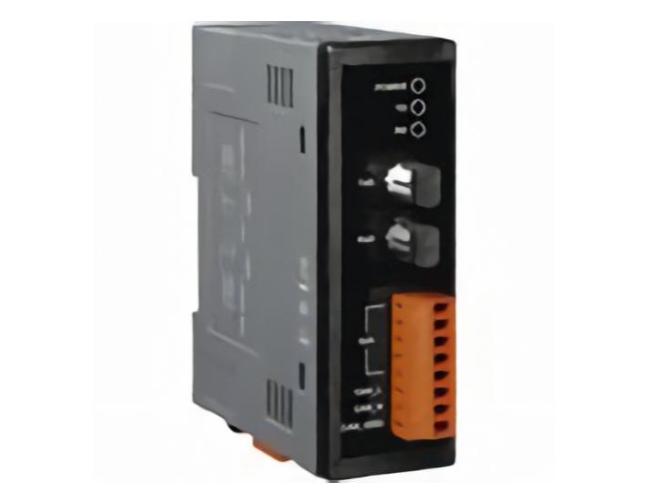

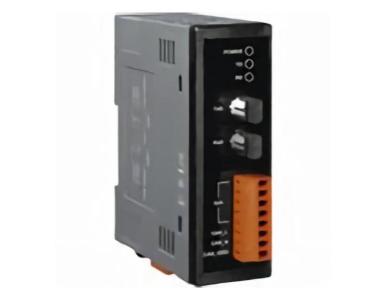

| CAN Interface
|
| Connector
|
Screwed terminal block (CAN_GND, CAN_L, CAN_H)
|
| Baud Rate (bps)
|
10 k ~ 1 M
|
| Transmission Distance (m)
|
Depend on baud rate
|
| Terminator Resistor
|
Switch for 120O terminator resistor
|
| Isolation
|
2500 Vrms
|
| Specification
|
ISO-11898-2, CAN 2.0A and CAN 2.0B
|
| Fiber Interface
|
| Connector
|
ST (Multi-mode)
|
| Wave Length
|
850 nm
|
| Fiber Cable
|
50 / 125 µm , 62.5 / 125 µm, 100 / 140 µm (62.5 / 125µm is
recommended)
|
| Propagation Delay
|
125ns max (125ns delay shortens bus line length by ~ 25 m)
|
| Transmission Distance (m)
|
2 km max (in 62.5 / 125 µm fiber cable)
|
| LED
|
| Round LED
|
PWR LED, CAN_Tx LED, CAN_Rx LED, CAN_Err LED, FB_Err LED
|
| Power
|
| Power supply
|
Unregulated +10 ~ +30 VDC
|
| Protection
|
Power reverse polarity protection, Over-voltage brown-out
protection
|
| Power Consumption
|
3 W
|
| Mechanism
|
| Installation
|
DIN-Rail
|
| Dimensions
|
32.3mm x 77.5mm x 99.0mm (W x L x H)
|
| Environment
|
| Operating Temp.
|
-25 ~ 75 ?
|
| Storage Temp.
|
-40 ~ 80 ?
|
| Humidity
|
5 ~ 95% RH, non-condensing
|
