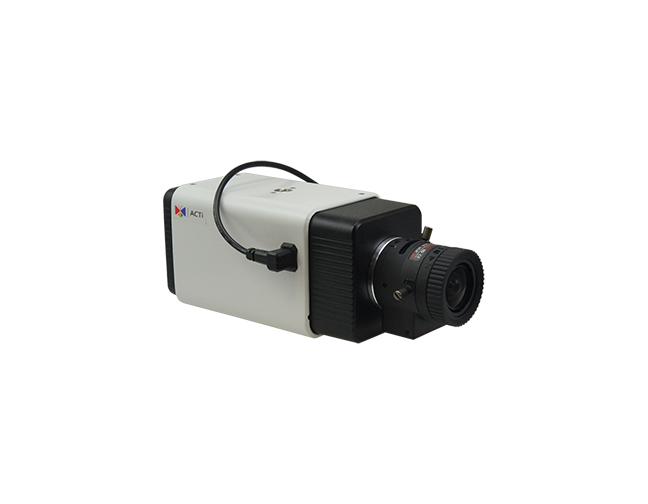

A24 - 5MP, Box Security Camera, Day and Night Vision, Extreme WDR, Superior Low Light Sensitivity, Built-in Analytics, High Reso
by ACTi
|
|
|
|
- 5MP Box with D/N
- Extreme WDR, SLLS, , Vari-focal lens with f3.6-10mm/F1.5-2.8
- P-Iris
- 1080p/ 30 fps
- H.265/H.264
- HOV:90°-40°
|
|
|
A24 is
a 5MP Box with D/N, Extreme WDR, SLLS, , Vari-focal lens, f3.6-10mm/F1.5-2.8 (HOV:90°-40°), P-Iris, H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, RS-485
Device |
A24 |
Product Type |
Box |
Maximum Resolution |
5MP |
Application Environment |
Indoor/Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/1.8 " |
Effective Pixels |
3096(H) X 2080(V) |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F1.5; B/W 0.05 lux at F1.5 (AGC on) |
Mechanical IR Cut Filter |
Yes |
IR LED |
No |
Horizontal Resolution (TV Lines) |
1650 TVL |
S/N Ratio |
56 dB |
Lens |
|
Focal Length |
Vari-focal, f3.6-10mm |
Aperture |
F1.5-F2.8 |
Iris |
P-Iris |
Focus |
Auto back focus |
Lens Mount |
CS Mount (interchangeable lens) |
Horizontal Viewing Angle |
89.1° - 38.2° |
Vertical Viewing Angle |
68.3° - 29° |
Video |
|
Compression |
H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
30 fps at 2592 x 1944
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 |
Multi-Streaming |
Simultaneous triple streams based on three configurations |
Bit Rate |
128Kbps - 20Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Extreme WDR (100 dB) |
Image Enhancement |
Digital Image Stabilizer, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
4 configurable regions |
Built-in Analytics |
Tamper |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Flip, Mirror, Rotation |
Audio |
|
Audio Type |
2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
Audio Compression |
8 kHz, Mono, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
Event |
|
Event Trigger |
Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video to local storage, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Interface |
|
Serial Port |
1 x RS-485 |
Analog Video Output |
1 x CVBS, BNC connector |
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
1/1 |
General |
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption |
12.95 W (PoE) |
Environmental Casing |
Optional housing (IP66) |
Mount Type |
Wall Mount, Ceiling Bracket, Corner Mount, Pole Mount |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Approvals |
CE, FCC, RoHS |
|
|
