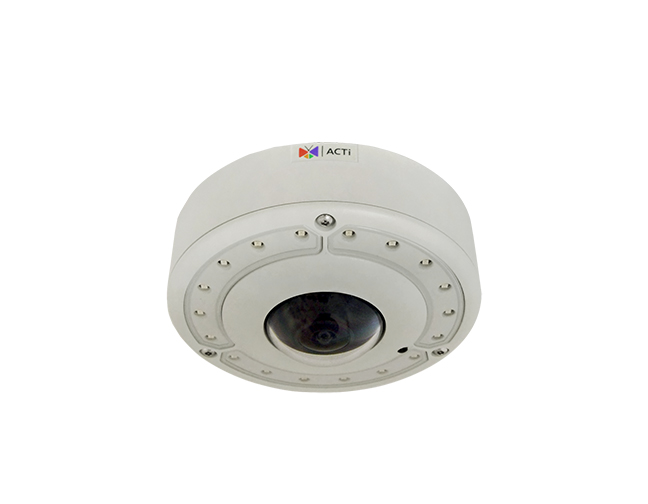

ACTI B74 - *Discontinued* - 8MP Video Analytics Outdoor Hemispheric Dome Security Camera, Day/Night Mode, Adaptive IR, Extreme W
by ACTi

Device

B74

Product TypeX

Hemispheric Dome

Maximum Resolution

8MP

Application Environment

Outdoor

Image Sensor

Progressive Scan CMOS

Sensor Size

1/1.8 "

Effective Pixels

3096(H) X 2080(V) (6.44 MP)

Day / Night

Yes

Low Light Sensitivity

Superior

Minimum Illumination

Color: 0.1 lux at F2.6 (30 IRE, 2400 K); B/W: 0 lux at F2.6 (IR LED on)

Color to B/W Switch

ISP based switch, configurable

Mechanical IR Cut Filter

Yes

IR Sensitivity Range

700-1100nm

IR LED

Adaptive IR LED

IR Working Distance

20m

Electronic Shutter

1/5-1/16000sec (manual mode); 1/5-1/16000sec (auto mode)

Horizontal Resolution (TV Lines)

1850 TVL

S/N Ratio

56 dB

Lens

Focal Length

Fixed focal, f1.3mm

Aperture

F2.6

Iris

Fixed iris

Focus

Fixed focus

Lens Mount

Board mount

Horizontal Viewing Angle

203.5° (overview area)
124.2° (high detail area)

Vertical Viewing Angle

203.5°
(Fisheye View)

Viewing Angle Adjustment

Rotation: -175°-175°

Overview, Zoom and Tracking (OZT) technology

Yes (Pair of intelligent hemispheric camera with I95, I96, I97 and I98 speed dome camera)

Video

Compression

H.264 (Baseline/ Main/ High profile), MJPEG

Maximum Frame Rate vs. Resolution

(Fisheye View)
24 fps at 3072 x 2048
30 fps at 2048 x 2048
30 fps at 1600 x 1200
30 fps at 1024 x 1024
30 fps at 1280 x 960
30 fps at 800 x 600
30 fps at 640 x 480
(Dewarped View)
10 fps at 4096 x 2160
10 fps at 3840 x 2160
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
(ePTZ View)
30 fps at 1920 x 1080
30 fps at 1600 x 1200
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 1024 x 1024
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240

View Mode

Fisheye View
Dewarped View
ePTZ View
270-degree Corner View

Multi-Streaming

Simultaneous triple streams based on three configurations

Bit Rate

128Kbps - 12Mbps (per stream)

Bit Rate Mode

Constant, Variable

Wide Dynamic Range

Extreme WDR (130 dB)

Image Enhancement

White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Defogging

Digital Noise Reduction

2D + 3D DNR

Privacy Mask

8 configurable regions

Text Overlay

Yes

Built-in Analytics

Object Based Motion Detection, Tamper, Shock Detection, Digital Auto Tracking, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering

VMS-based Analytics

Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Image Orientation

Flip, Mirror

IVS performance

Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project.

Audio

Audio Type

2-way, Mic-in, Line-in, Line-out

Audio Compression

8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

Network Protocol & Service

IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X

Ethernet Port

1 x RJ-45 connector

Security

IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger

Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection,

Event Response

Notify control center, Go to ePTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration

Unified Solution

Fully compatible with ACTi software

Software Development Kit

Yes

GPS Position

Manual setting

ONVIF Compliant

Yes, Profile S, Profile G

GB28181 Compliant

Yes

Web Browser

IE 8.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime

Auto Firmware Upgrade

Yes

Interface

Audio Interface

1/1, Terminal block

Local Storage

MicroSDHC, MicroSDXC memory card slot (card not included)

Digital Input/Output

2/2 (Terminal block)

General

Power Source

PoE Class 3 (IEEE802.3af), DC 12V

Power Consumption

7.3 W (PoE), 5.6 W (DC)

Weight

936g (2.059lb)

Dimensions

(Ø x H): 152.00mm x 71.04mm (6.0" x 2.8")

Environmental Casing

Weatherproof (IP68), Vandal proof (IK10)

Mount Type

Surface, Rough Surface, Gang Box, Pendant, Tilted Mount, Wall Mount, Pole Mount, Corner Mount

Starting Temperature

-40°C ~ 50°C (-40°F ~ 122°F)

Operating Temperature

-40°C ~ 50°C (-40°F ~ 122°F)

Approvals

CE, FCC, IP68, IK10, NEMA 4X, UL (for optional PoE injector and power adapter)
