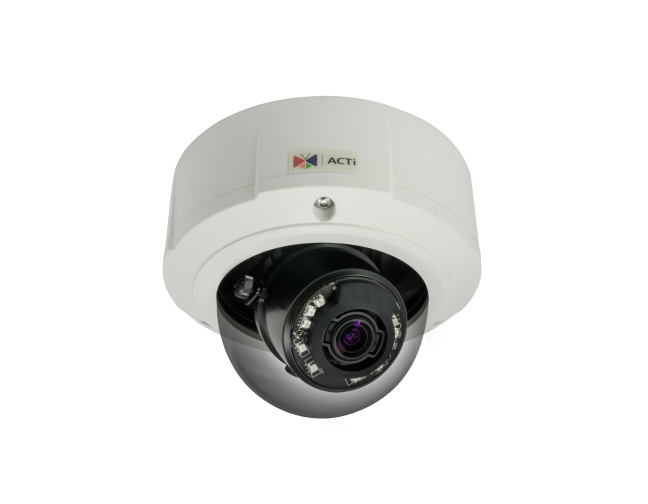

B87 - 3MP Weatherproof Outdoor Zoom Dome IP Camera with Day/Night, Adaptive IR, Superior WDR, 3x Zoom Lens by ACTi
|
|
|
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- 3x Zoom Lens with f3 - 9mm / F1.2 - 2.1, DC Iris, Auto Focus
- Superior WDR (110 dB)
- 30 fps at 1920 x 1080
- Weatherproof (IP67) and Vandal Proof (IK10)
|
|
|
B87
is
a 3MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 3x Zoom lens, 3-9mm/F1.2-2.1 (HOV:84.5°-29.8°), DC iris, Auto Focus, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO
Device |
B87 |
Product TypeX |
Zoom Dome |
Maximum Resolution |
3MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/3 " |
Effective Pixels |
2048(H) X 1536(V) (3.15 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Standard |
Minimum Illumination |
Color: 0.1 lux at F1.2 (30 IRE, 2400 K); B/W: 0 lux at F1.2 (IR LED on) |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
Adaptive IR LED |
IR Working Distance |
40m |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1450 TVL |
S/N Ratio |
52 dB |
Lens |
|
Focal Length |
Zoom, f3.0-9.0mm |
Aperture |
F1.2-F2.1 |
Zoom Ratio |
3x optical |
Zoom Speed |
1 sec (wide to tele) |
Zoom Application |
Camera Installation, Auto Zoom by Event, Manual Operation |
Iris |
DC iris |
Focus |
Auto focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
84.5° - 29.8° |
Vertical Viewing Angle |
61.8° - 22.4° |
Viewing Angle Adjustment |
Pan: 0°-350°, Tilt: 5°-170°, Rotation: 0°-350° |
PTZ |
|
Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P, ACTi URL command |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
20 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 |
Multi-Streaming |
Simultaneous dual streams based on two configurations |
Bit Rate |
28Kbps - 6Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Superior WDR (110 dB) |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
Digital Noise Reduction |
DNR |
Privacy Mask |
4 configurable regions for each of 17 preset points |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Flip, Mirror |
Audio |
|
Audio Type |
2-way, Line-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (3 regions), External device through digital input, Sound detection, |
Event Response |
Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
Software Development Kit |
Yes |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Audio Interface |
Terminal block |
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
2/2 |
General |
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption |
9.76 W (PoE) |
Weight |
1260g (2.78lb) |
Dimensions |
(Ø x H): 152mm x 114.5mm (6.0" x 4.5") |
Environmental Casing |
Weatherproof (IP67), Vandal proof (IK10) |
Mount Type |
Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
Heater |
Yes |
Starting Temperature |
-40°C ~ 50°C (-40°F ~ 122°F) within 30 minutes |
Operating Temperature |
-40°C ~ 50°C (-40°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE, FCC, IP67, IK10, NEMA 4X, UL Listed (UL 60950-1) |
|
|
