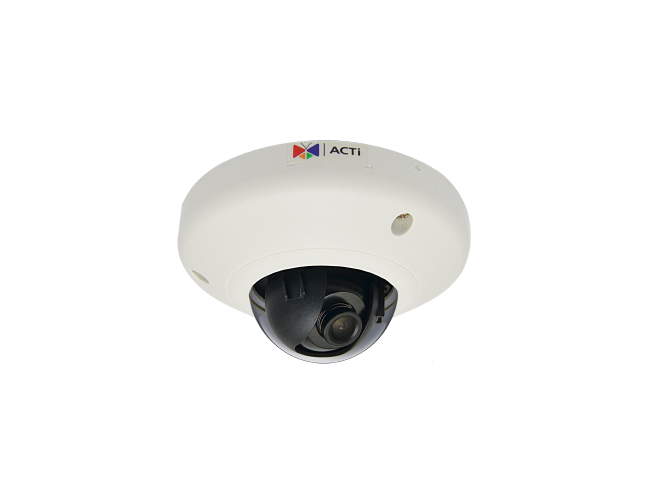

D91
is
a 1MP Indoor Mini Dome with Fixed lens, f2.93mm/F2.0 (HOV:72°), H.264, 720p/30fps, DNR, MicroSDHC/MicroSDXC, PoE, IK08
Device |
D91 |
Product Type |
Mini Dome |
Maximum Resolution |
1MP |
Application Environment |
Indoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/4 " |
Effective Pixels |
1280(H) X 800(V) (1.02 MP) |
Day / Night |
No |
Low Light Sensitivity |
Standard |
Minimum Illumination |
Color: 0.1 lux at F2.0 (30 IRE, 2400 K) |
Mechanical IR Cut Filter |
No |
IR LED |
No |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
700 TVL |
S/N Ratio |
52 dB |
Lens |
|
Focal Length |
Fixed focal, f2.93mm |
Aperture |
F2.0 |
Iris |
Fixed iris |
Focus |
Fixed focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
72.0° |
Vertical Viewing Angle |
38.2° |
Viewing Angle Adjustment |
Pan: ±90°, Tilt: 0°-90° |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 |
Multi-Streaming |
Simultaneous dual streams based on two configurations |
Bit Rate |
28Kbps - 6Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
Digital Noise Reduction |
DNR |
Privacy Mask |
4 configurable regions |
Text Overlay |
Yes |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Flip, Mirror |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (3 regions) |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
Software Development Kit |
Yes |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
General |
|
Power Source |
PoE Class 1 (IEEE802.3af) |
Power Consumption |
2.43 W (PoE) |
Weight |
201g (0.443lb) |
Dimensions |
(Ø x H): 110mm x 58mm (4.3" x 2.3") |
Environmental Casing |
Vandal resistant (IK08) |
Mount Type |
Surface, Gang Box, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE, FCC, IK08, UL (for optional PoE injector) |
|
