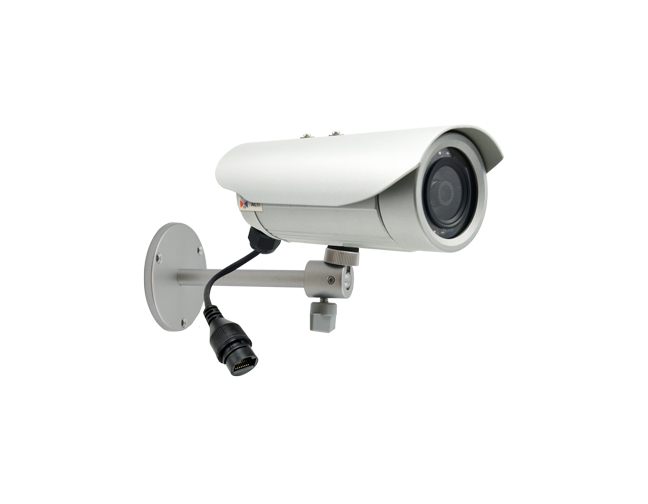

E32A - 3MP Bullet IP Surveillance Camera System with Day/Night Vision, Adaptive IR, Basic WDR, Fixed Lens by ACTi
|
|
|
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Fixed Lens with f4.2mm / F1.8
- Basic WDR (74 dB)
- 30 fps at 1980 x 1020
- Weatherproof (IP68) and Vandal Proof Metal Casing (IK10)
|
|
|
E32A is
a 3MP Bullet with D/N, Adaptive IR, Basic WDR, Fixed lens, f4.2mm/F1.8 (HOV:62.7°), H.264, 1080p/30fps, DNR, MicroSDHC/MicroSDXC, PoE, IP68, IK10 (metal casing)
Device |
E32A |
Product Type |
Bullet |
Maximum Resolution |
3MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/3.2 " |
Effective Pixels |
2592(H) X 1944(V) (5.04 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Standard |
Minimum Illumination |
Color: 0.1 lux at F1.8 (30 IRE, 2400 K); B/W: 0 lux at F1.8 (IR LED on) |
Color to B/W Switch |
ISP based switch, configurable |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
Adaptive IR LED |
IR Working Distance |
30m |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1350 TVL |
S/N Ratio |
52 dB |
Lens |
|
Focal Length |
Fixed focal, f4.2mm |
Aperture |
F1.8 |
Iris |
Fixed iris |
Focus |
Fixed focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
62.7° |
Vertical Viewing Angle |
33.8° |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 |
Multi-Streaming |
Simultaneous dual streams based on two configurations |
Bit Rate |
28Kbps - 6Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Basic WDR (74 dB) |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
Digital Noise Reduction |
DNR |
Privacy Mask |
4 configurable regions |
Text Overlay |
Yes |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Flip, Mirror |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (3 regions) |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
Software Development Kit |
Yes |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
General |
|
Power Source |
PoE Class 2 (IEEE802.3af) |
Power Consumption |
3.36 W (PoE, IR on) |
Weight |
704g (1.29lb) |
Dimensions |
(Ø x L): 77mm x 190mm (3.03" x 7.48") |
Environmental Casing |
Weatherproof (IP68), Vandal proof metal casing (IK10) |
Bundled Accessories |
Bracket |
Mount Type |
Bracket, Pole Mount, Corner Mount |
Starting Temperature |
-20°C ~ 50°C (-4°F ~ 122°F) |
Operating Temperature |
-40°C ~ 50°C (-40°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE, FCC, IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector) |
|
|
