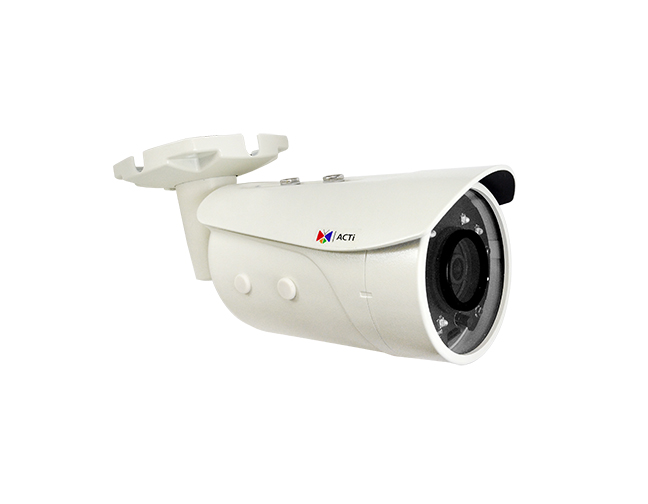

E39 - 2MP Video Analytics Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed Lens by ACTi
|
|
|
- 2 Megapixel with 1080p
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f3.6mm / F1.85
- Extreme WDR
- 60 fps at 1920 x 1080
- Wide Angle
- Weatherproof (IP68) and Vandal Proof Metal Casing (IK10)
- Built-in Analytics
|
|
|
E39 is
a 2MP Video Analytics Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed lens, f3.6mm/F1.85 (HOV:86.4°), H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10 (metal casing), DI/DO, Built-in Analytics
Device |
E39 |
Product Type |
Bullet |
Maximum Resolution |
2MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/2.8 " |
Effective Pixels |
1945(H) X 1097(V) (2.13 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Extreme |
Minimum Illumination |
Color: 0.1 lux at F1.85 (30 IRE, 2400 K); B/W: 0 lux at F1.85 (IR LED on) |
Color to B/W Switch |
ISP based switch, configurable |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
Adaptive IR LED x 8 (850 nm) |
IR Working Distance |
30m |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1100 TVL |
S/N Ratio |
56 dB |
Lens |
|
Focal Length |
Fixed focal, f3.6mm |
Aperture |
F1.85 |
Iris |
Fixed iris |
Focus |
Fixed focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
90.6° |
Vertical Viewing Angle |
50.5° |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 |
Multi-Streaming |
Simultaneous triple streams based on three configurations |
Bit Rate |
128Kbps - 12Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Extreme WDR (145 dB) |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Digital Image Stabilizer, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
4 configurable regions |
Text Overlay |
Yes |
On-Screen Graphics |
Yes |
Built-in Analytics |
Face Detection, Object Based Motion Detection, Tamper, Shock Detection, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Mirror, Flip, Rotation |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio |
|
Audio Type |
2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Audio Interface |
Built-in microphone, Cable with 3.5mm Phone Jack |
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
1/1 (Cable with Terminal block) |
General |
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption |
12.95 W (PoE) |
Dimensions |
(Ø x L): 80mm x 236mm (3.15" x 9.29") |
Environmental Casing |
Weatherproof (IP68), Vandal proof metal casing (IK10), Built-in dehumidifier |
Bundled Accessories |
Integrated bracket |
Mount Type |
Wall Mount, Ceiling Bracket, Pole Mount |
Dehumidifier |
Yes |
Starting Temperature |
-40°C ~ 50°C (-40°F ~ 122°F) |
Operating Temperature |
-40°C ~ 50°C (-40°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter) |
|
|
