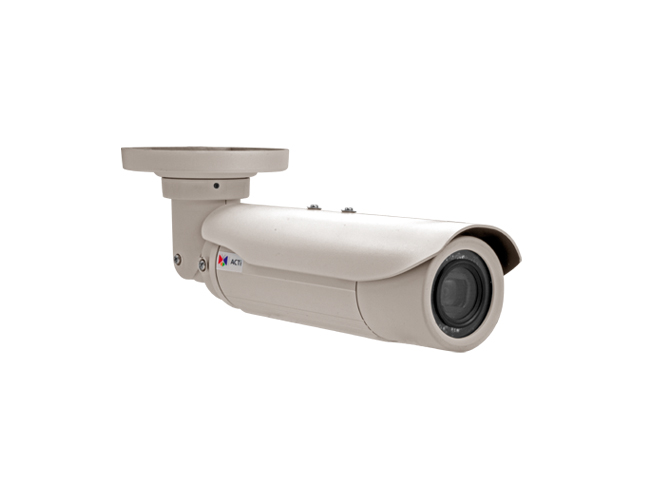

E417 - 2MP Video Analytics Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 10x Zoom Lens by ACTi
|
|
|
- 2 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 10x Zoom Lens with f4.9 - 49mm / F2.8 - 3.5, Adaptive Iris, Auto Focus (for Installation)
- Extreme WDR (145 dB)
- 60 fps at 1920 x 1080 (60 Hz)
- Weatherproof (IP68) and Vandal Proof Metal Casing (IK10)
- Built-in Analytics
|
|
|
E417 is
a 2MP Video Analytics Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 10x Zoom lens, f4.9-49mm/F2.8-3.5 (HOV:60°-7.3°), Adaptive iris, Auto Focus (for installation), H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC, PoE/DC12V, IP68, IK10 (metal casing) , DI/DO, Built-in Analytics
Device |
E417 |
Product Type |
Zoom Bullet |
Maximum Resolution |
2MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/2.8 " |
Effective Pixels |
1944(H) X 1224(V) (2.38 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F2.8 (30 IRE, 2400 K); B/W: 0 lux at F2.8 (IR LED on) |
Color to B/W Switch |
ISP based switch, configurable |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
Adaptive IR LED |
IR Working Distance |
30m |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1100 TVL |
S/N Ratio |
56 dB |
Lens |
|
Focal Length |
Zoom, f4.9-49mm |
Aperture |
F2.8-F3.5 |
Zoom Ratio |
10x optical |
Zoom Speed |
3.3 sec (wide to tele) |
Zoom Application |
Camera Installation |
Iris |
Adaptive iris |
Focus |
Auto focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
60° - 7.3° |
Vertical Viewing Angle |
35.5° - 4.2° |
PTZ |
|
Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P, ACTi URL command |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 |
Multi-Streaming |
Simultaneous triple streams based on three configurations |
Bit Rate |
128Kbps - 12Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Extreme WDR (145 dB) |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
20 configurable 3D privacy masks |
Text Overlay |
Yes |
Built-in Analytics |
Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Rotation |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio |
|
Audio Type |
2-way, Line-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
Software Development Kit |
Yes |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Audio Interface |
3.5mm Phone Jack |
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
1/1 |
General |
|
Power Source |
DC 12V (adapter not included), PoE Class 3 (IEEE802.3af) |
Power Consumption |
9 W (PoE) |
Weight |
1120g (2.469lb) |
Dimensions |
(W x H x D): 119.42mm x 113mm x 291mm (4.7" x 4.45" x 11.46") |
Environmental Casing |
Weatherproof (IP68), Vandal proof metal casing (IK10) |
Bundled Accessories |
Integrated bracket |
Mount Type |
Gang Box, Integrated Bracket, Pole Mount |
Heater |
Yes |
Starting Temperature |
-20°C ~ 50°C (-4°F ~ 122°F) within 30 minutes |
Operating Temperature |
-30°C ~ 50°C (-22°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE, FCC, IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector) |
|
|
