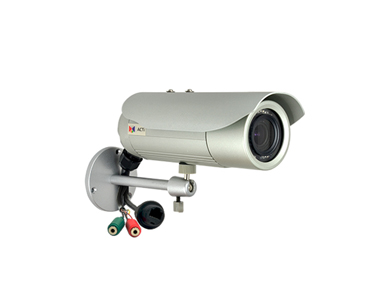

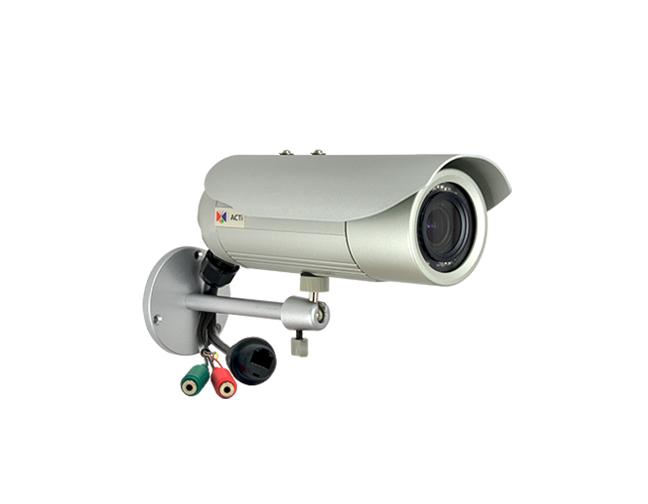

ACTI E41B - *Discontinued* - 1MP Bullet with D/N, Adaptive IR, Basic WDR, Vari-focal Lens
by ACTi

Device

E41B

Product Type

Bullet

Maximum Resolution

1MP

Application Environment

Outdoor

Image Sensor

Progressive Scan CMOS

Sensor Size

1/4 "

Effective Pixels

1280(H) X 800(V) (1.02 MP)

Day / Night

Yes

Low Light Sensitivity

Standard

Minimum Illumination

Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux at F1.4 (IR LED on)

Color to B/W Switch

ISP based switch, configurable

Mechanical IR Cut Filter

Yes

IR Sensitivity Range

700-1100nm

IR LED

Adaptive IR LED x 15 (850 nm)

IR Working Distance

30m (0 lux, 30IRE, Gain 255, Auto shutter mode)

Electronic Shutter

1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode)

Horizontal Resolution (TV Lines)

700 TVL

S/N Ratio

52 dB

Lens

Focal Length

Vari-focal, f2.8-12mm

Aperture

F1.4

Iris

Fixed iris

Focus

Manual focus

Lens Mount

Board mount

Horizontal Viewing Angle

59.8° - 24.7°

Vertical Viewing Angle

35.1° - 14.8°

Video

Compression

H.264 (Baseline/ Main/ High profile), MJPEG

Maximum Frame Rate vs. Resolution

30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240

Multi-Streaming

Simultaneous dual streams based on two configurations

Bit Rate

28Kbps - 6Mbps (per stream)

Bit Rate Mode

Constant, Variable

Wide Dynamic Range

Basic WDR (74 dB)

Image Enhancement

White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless

Digital Noise Reduction

DNR

Privacy Mask

4 configurable regions

Text Overlay

Yes

On-Screen Graphics

Yes

VMS-based Analytics

Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Image Orientation

Flip, Mirror

Audio

Audio Type

2-way, Line-in, Line-out

Audio Compression

8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

Network Protocol & Service

IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X

Ethernet Port

1 x RJ-45 connector

Security

IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger

Video motion detection (3 regions), External device through digital input, Sound detection

Event Response

Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output

Integration

Unified Solution

Fully compatible with ACTi software

Software Development Kit

Yes

GPS Position

Manual setting

ONVIF Compliant

Yes, Profile S, Profile G

GB28181 Compliant

Yes

Web Browser

IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime

Auto Firmware Upgrade

Yes

Interface

Audio Interface

Cable with 3.5mm Phone Jack

Local Storage

MicroSDHC, MicroSDXC memory card slot (card not included)

Digital Input/Output

1/1

General

Power Source

PoE Class 2 (IEEE802.3af)

Power Consumption

4.32 W (PoE, IR on)

Weight

955g (2.105lb)

Dimensions

(Ø x L): 77mm x 218mm (3.03" x 8.58")

Environmental Casing

Weatherproof (IP68), Vandal proof metal casing (IK10)

Bundled Accessories

Bracket

Mount Type

Bracket, Pole Mount, Corner Mount

Starting Temperature

-20°C ~ 50°C (-4°F ~ 122°F)

Operating Temperature

-40°C ~ 50°C (-40°F ~ 122°F)

Operating Humidity

10% - 85% RH

Approvals

CE, FCC, IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector)
