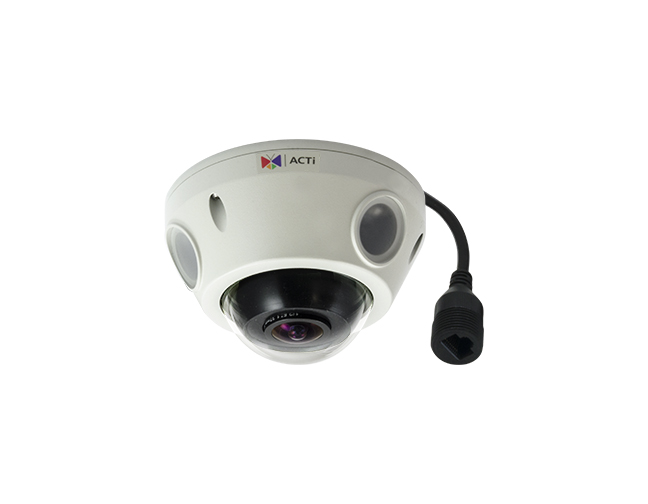

E927 - 10MP Outdoor Mini Fisheye Dome with D/N, Adaptive IR, Basic WDR, Fixed Lens
by ACTi

Device

E927

Product Type

Mini Fisheye Dome

Maximum Resolution

10MP

Application Environment

Outdoor

Image Sensor

Progressive Scan CMOS

Sensor Size

1/2.3 "

Effective Pixels

3856(H) X 2764(V) (10.66 MP)

Day / Night

Yes

Low Light Sensitivity

Standard

Minimum Illumination

Color: 0.1 lux at F2.0 (30 IRE, 2400 K); B/W: 0 lux at F2.0 (IR LED on)

Mechanical IR Cut Filter

Yes

IR Sensitivity Range

700-1100nm

IR LED

Adaptive IR LED

IR Working Distance

10m

Electronic Shutter

1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode)

Horizontal Resolution (TV Lines)

1450 TVL

S/N Ratio

52 dB

Lens

Focal Length

Fixed focal, f1.37mm

Aperture

F2.0

Iris

Fixed iris

Focus

Fixed focus

Lens Mount

Board mount

Horizontal Viewing Angle

187.7° (overview area)
114.5° (high detail area)

Vertical Viewing Angle

187.69°

Viewing Angle Adjustment

Rotation: ±90°

Video

Compression

H.264 (Baseline/ Main/ High profile), MJPEG

Maximum Frame Rate vs. Resolution

7 fps at 3648 x 2736
7 fps at 2592 x 1944
7 fps at 2048 x 1536
7 fps at 1440 x 1080
7 fps at 1280 x 960
7 fps at 800 x 600
7 fps at 640 x 480
7 fps at 320 x 240

View Mode

Fisheye View

Multi-Streaming

Simultaneous dual streams based on two configurations

Bit Rate

28Kbps - 6Mbps (per stream)

Bit Rate Mode

Constant, Variable

Wide Dynamic Range

Basic WDR (70 dB)

Image Enhancement

White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless

Digital Noise Reduction

2D + 3D DNR

Privacy Mask

4 configurable regions

Text Overlay

Yes

VMS-based Analytics

Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Image Orientation

Flip, Mirror

Audio

Audio Type

1-way, Mic-in, Line-in

Audio Compression

8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

Network Protocol & Service

IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X

Ethernet Port

1 x RJ-45 connector

Security

IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger

Video motion detection (3 regions), Sound detection,

Event Response

Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server

Integration

Unified Solution

Fully compatible with ACTi software

Software Development Kit

Yes

GPS Position

Manual setting

ONVIF Compliant

Yes, Profile S, Profile G

GB28181 Compliant

Yes

Web Browser

IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime

Auto Firmware Upgrade

Yes

Interface

Audio Interface

Cable with 3.5mm Phone Jack

Local Storage

MicroSDHC, MicroSDXC memory card slot (card not included)

General

Power Source

PoE Class 2 (IEEE802.3af)

Power Consumption

4.8 W (PoE)

Weight

475g (1.05lb)

Dimensions

(Ø x H): 115mm x 70mm (4.5" x 2.8")

Environmental Casing

Weatherproof (IP68), Vandal proof (IK10), Vibration proof (EN50155)

Mount Type

Surface, Gang Box, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount

Starting Temperature

-20°C ~ 50°C (-4°F ~ 122°F)

Operating Temperature

-20°C ~ 50°C (-4°F ~ 122°F)

Operating Humidity

10% - 85% RH

Approvals

CE, FCC, IP68, IK10, NEMA 4X, EN50155, UL (for optional PoE injector)
