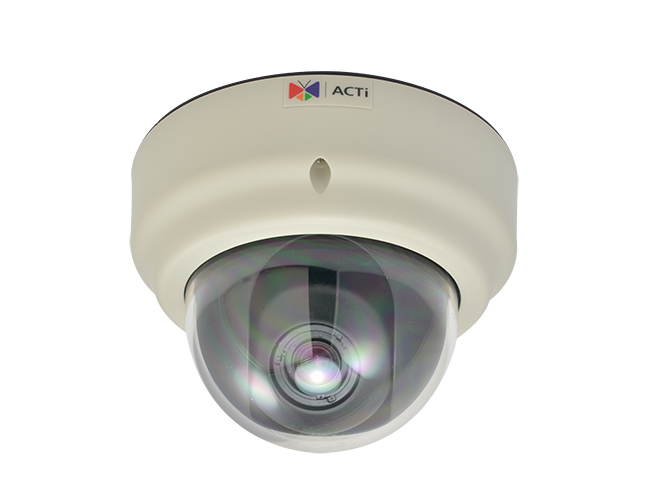

KCM-3311 - 4M Indoor Dome with D/N, Advanced WDR, SLLS, 3.6x Zoom Lens by ACTi
|
|
|
- 4 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity
- 3.6x Zoom Lens with f3.3-12mm / F1.4-2.9, P-Iris, Auto Focus
- Advanced WDR (80 dB)
- 15 fps at 1920 x 1080
|
|
|
KCM-3311
is
a 4MP Indoor Dome with D/N, Advanced WDR, SLLS, 3.6x Zoom lens, f3.3-12mm/F1.4-2.9 (HOV:77.2°-22.6°), P-Iris, Auto Focus, H.264, 1080p/15fps, 2D+3D DNR, PoE
Device |
KCM-3311 |
Product Type |
Zoom Dome |
Maximum Resolution |
4MP |
Application Environment |
Indoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/3.2 " |
Effective Pixels |
2592(H) X 1944(V) (5.04 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F1.4 (30 IRE , 2400 K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 K) |
Color to B/W Switch |
ISP based switch, configurable |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
No |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1422 TVL |
Lens |
|
Focal Length |
Zoom, f3.3-12mm |
Aperture |
F1.4-F2.9 |
Zoom Ratio |
3.6x optical |
Zoom Application |
Camera Installation, Auto Zoom by Event, Manual Operation |
Iris |
P-Iris |
Focus |
Auto focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
77.2° - 22.6° |
Viewing Angle Adjustment |
Pan: 0°-350°, Tilt: 0°-180°, Rotation: 0°-350° |
PTZ |
|
Pan, Tilt or Zoom protocol |
Visca |
Video |
|
Compression |
H.264 (Baseline), MPEG-4 SP, MJPEG |
Maximum Frame Rate vs. Resolution |
8 fps at 2032 x 1920
15 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480 |
Multi-Streaming |
Simultaneous dual streams based on two configurations
Multiple streams based on a single configuration in 4 cropped VGA mode |
Bit Rate |
28Kbps - 6Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Advanced WDR (80 dB) |
Image Enhancement |
White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control, Flickerless, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
4 configurable regions |
Text Overlay |
Yes |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Flip, Mirror |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (3 regions), |
Event Response |
Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to local storage, Upload video or snapshot to FTP server |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
Software Development Kit |
Yes |
ONVIF Compliant |
Yes, Profile S |
Web Browser |
IE 8.0 or newer |
Interface |
|
Local Storage |
No |
General |
|
Power Source |
PoE Class 3 (IEEE802.3af) |
Power Consumption |
11.76 W (PoE) |
Weight |
615g (1.36lb) |
Dimensions |
(Ø x H): 146.00mm x 105.10mm (5.7" x 4.1") |
Environmental Casing |
No |
Mount Type |
Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE, FCC, UL (for optional PoE injector) |
|
|
