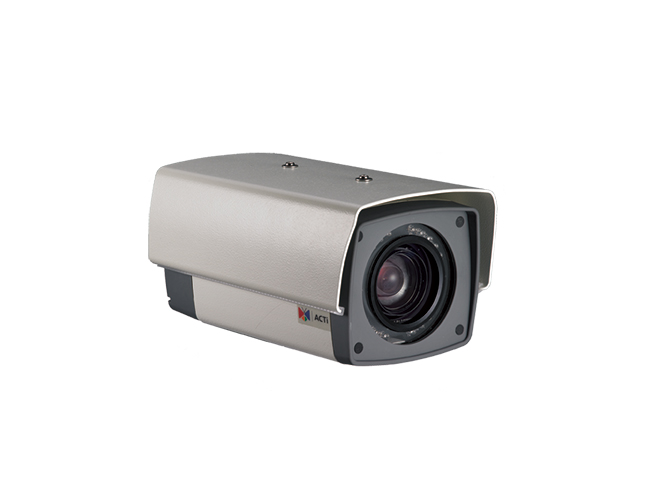

KCM-5211E - 4M Outdoor Box with D/N, IR, Advanced WDR, SLLS,18x Zoom lens
by ACTi

Device

KCM-5211E

Product Type

Zoom Box

Maximum Resolution

4MP

Application Environment

Outdoor

Image Sensor

Progressive Scan CMOS

Sensor Size

1/3.2 "

Effective Pixels

2592(H) X 1944(V) (5.04 MP)

Day / Night

Yes

Low Light Sensitivity

Superior

Minimum Illumination

Color: 0.1 lux at F1.6 (30 IRE, 2400 K); B/W: 0 lux at F1.6 (IR LED on)

Color to B/W Switch

ISP based switch, configurable

Mechanical IR Cut Filter

Yes

IR Sensitivity Range

700-1100nm

IR LED

IR LED

Electronic Shutter

1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode)

Horizontal Resolution (TV Lines)

1650 TVL

Lens

Focal Length

Zoom, f4.7-84.6mm

Aperture

F1.6-F2.8

Zoom Ratio

18x optical

Zoom Speed

2.63 sec (wide to tele)

Zoom Application

Camera Installation, Auto Zoom by Event, Manual Operation

Iris

DC iris

Focus

Auto focus

Lens Mount

Board mount

Horizontal Viewing Angle

48.9° - 3.6°

PTZ

Pan, Tilt or Zoom protocol

Visca, Pelco-D, Pelco-P

Video

Compression

H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG

Maximum Frame Rate vs. Resolution

8 fps at 2032 x 1920
15 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480

Multi-Streaming

Simultaneous dual streams based on two configurations
Multiple streams based on a single configuration in 4 cropped VGA mode

Bit Rate

28Kbps - 6Mbps (per stream)

Bit Rate Mode

Constant, Variable

Wide Dynamic Range

Advanced WDR (80 dB)

Image Enhancement

White Balance, Brightness, Contrast, Automatic gain control, Flickerless, Defogging

Digital Noise Reduction

2D + 3D DNR

Privacy Mask

4 configurable regions

Text Overlay

Yes

VMS-based Analytics

Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Image Orientation

Flip, Mirror

Audio

Audio Type

2-way, Line-in, Line-out

Audio Compression

8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

Network Protocol & Service

IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X

Ethernet Port

1 x RJ-45 connector

Security

IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Event

Event Trigger

Video motion detection (3 regions), External device through digital input

Event Response

Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to local storage, Upload video or snapshot to FTP server, Activate external device through digital output

Integration

Unified Solution

Fully compatible with ACTi software

Software Development Kit

Yes

ONVIF Compliant

Yes, Profile S

Web Browser

IE 8.0 or newer

Interface

Serial Port

1 x RS-485/RS-422

Audio Interface

3.5mm Phone Jack

Local Storage

MicroSDHC memory card slot (card not included)

Digital Input/Output

2/2

General

Power Source

DC 12V, PoE Class 3 (IEEE802.3af)

Power Consumption

9.12 W (PoE, IR on)

Weight

1350g (2.98lb)

Dimensions

(W x H x D): 115.20mm x 130.59mm x 195mm (4.50" x 5.10" x 7.70")

Environmental Casing

Weatherproof (IP66)

Mount Type

Bracket, Pole Mount, Corner Mount

Starting Temperature

-20°C ~ 50°C (-4°F ~ 122°F) within 30 minutes

Operating Temperature

-40°C ~ 50°C (-40°F ~ 122°F)

Operating Humidity

10% - 85% RH

Approvals

CE, FCC, IP66, UL (for optional PoE injector and power adapter)
