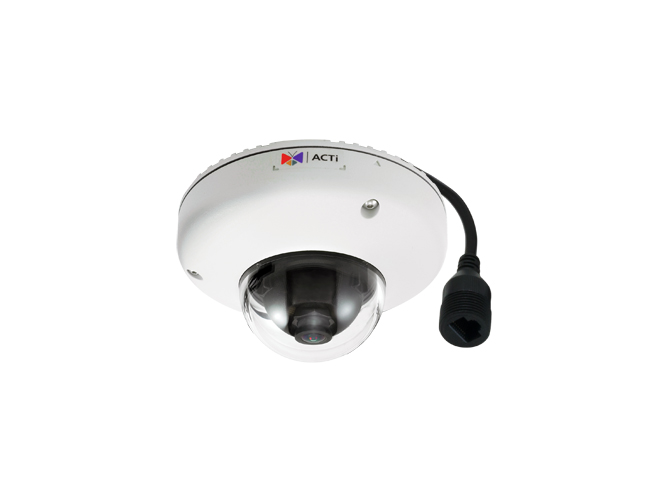

ACTI Q91 - *Discontinued* - 2MP People Counting Outdoor Mini Dome with Extreme WDR, SLLS, Fixed Lens
by ACTi

Device

Product Type

Mini Dome

Maximum Resolution

2MP

Product Application

People Counting

Application Environment

Outdoor

Image Sensor

Progressive Scan CMOS

Sensor Size

1/2.8 "

Effective Pixels

1944(H) X 1224(V) (2.38 MP)

Day / Night

Electronic Day / Night

Low Light Sensitivity

Superior

Minimum Illumination

Color: 0.1 lux at F2.2 (30 IRE , 2400 K); B/W: 0.1 lux at F2.2 (30 IRE, 2400 K)

Mechanical IR Cut Filter

No

IR LED

No

Horizontal Resolution (TV Lines)

1100 TVL

S/N Ratio

56 dB

Lens

Focal Length

Fixed focal, f2.55mm

Aperture

F2.2

Iris

Fixed iris

Focus

Fixed focus

Lens Mount

Board mount

Horizontal Viewing Angle

110.3°

Vertical Viewing Angle

62.7°

Viewing Angle Adjustment

Pan: 90°-90°, Tilt: 0°-90°

Video

Compression

H.264 (Baseline/ Main/ High profile), MJPEG

Maximum Frame Rate vs. Resolution

60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240

Multi-Streaming

Simultaneous triple streams based on three configurations

Bit Rate

128Kbps - 12Mbps (per stream)

Bit Rate Mode

Constant, Variable

Wide Dynamic Range

Extreme WDR (145 dB)

Image Enhancement

Digital Image Stabilizer, Defogging

Digital Noise Reduction

2D + 3D DNR

Privacy Mask

4 configurable regions

Built-in Analytics

Object Counting, People Counting, Object Based Motion Detection, Tamper

VMS-based Analytics

Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)

Image Orientation

Rotation

IVS performance

Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project.

Audio

Audio Type

1-way, Mic-in, Line-in

Audio Compression

8 kHz, 16 bit encoding, Mono, PCM, G.711

Network

Network Protocol & Service

IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X

Ethernet Port

1 x RJ-45 connector

Security

IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event

Event Trigger

Video motion detection (10 regions), Sound detection, Intelligent event detection

Event Response

Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Upload video to NVR server, Upload video or snapshot to FTP server

Integration

Unified Solution

Fully compatible with ACTi software

GPS Position

Manual setting

ONVIF Compliant

Yes, Profile S, Profile G

GB28181 Compliant

Yes

Web Browser

IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime

Auto Firmware Upgrade

Yes

Interface

Local Storage

MicroSDHC, MicroSDXC memory card slot (card not included)

General

Power Source

PoE Class 2 (IEEE802.3af)

Power Consumption

3.92 W (PoE)

Environmental Casing

Weatherproof (IP68), Vandal proof (IK10), Vibration proof (EN50155)

Mount Type

Surface, Gang Box, Pendant, Converter for NPT Standard Mounts

Starting Temperature

-20°C ~ 50°C (-4°F ~ 122°F)

Operating Temperature

-20°C ~ 50°C (-4°F ~ 122°F)

Approvals

CE, FCC, IP68, IK10, NEMA 4X, EN50155, UL (for optional PoE injector)
