Moxa VPort 06-2L60M - EN50155,FHD,H.264/MJPEG IP camera,M12 connector,1 audio input, 24VDC,6.0mm Lens,-25 to 55C
by MOXA

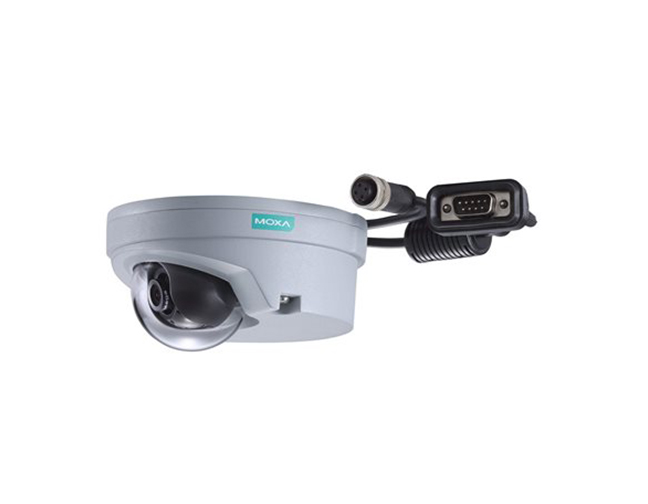

Moxa VPort 06-2L60M

The VPort 06-2 cameras are compact, 1080P (1920 x 1080), H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155,  and support a -25 to 55°C or -40 to 70°C operating temperature range. With a rugged M12 Ethernet port, SDXC slot for SD cards up to 1 TB, ONVIF Profile S standardization, built-in audio line port or microphone, PoE or 24 VDC power inputs, IP66-rated, and the option of changing the lens, the VPort 06-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.

Specifications

• Lens: 6.0 mm
• Audio Interface: Line-in
• Local storage: microSD slot, SDXC interface
• Power input: 12/24 VDC
• Operating temperature: -40~70ºC
• Digital input channels: 1
• Digital outputs:
  • +13 to +30 V for state 1
  • -30 to +1 V for state 0
  • Max. input current: 8 mA
• Connector: DB9 male
• Ethernet interface: 10/100BaseT(X) ports (M12 D-coded 4-pin female connector): 1
• Protocols:
  • TCP/IP
  • IPv4/IPv6
  • UDP
  • HTTP
  • RTP/RTSP
  • ARP
  • UPnP
  • FTP
  • TFTP
  • NTP Client
  • DNS
  • QoS
  • IGMP v3
  • ICMP
  • SNMPv1/v2c/v3
  • DHCP Opt66/67
  • HTTPS
  • SIP
• Password: user-level password protection
• Filter: IP address
• Encryption: HTTPS, SSH
• No. of power inputs: 1
• Input current: 0.86A @ 12VDC; 0.35A @ 24VDC
• MTBF time: 1,063,089 hrs
