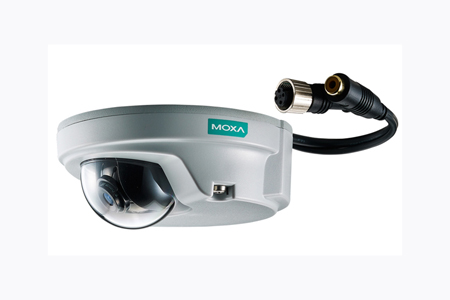

VPort P06-1MP-M12-CAM25-T - EN50155,HD,compact IP camera,M12 connector,1 audio-in,PoE,2.5mm Lens,-40 to 70 Degree C
by MOXA

The compact VPort P06-1MP-M12-CAM25-T cameras provide an HD (720P, 1280 x 720) video image, and feature an H.264/MJPEG IP dome, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications. The cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature range, a rugged M12 Ethernet port, 1 audio input, PoE power inputs, IP66 rain and dust protection, a dehumidifying membrane, and a selectable lens.

• Camera
Sensor	1/2.7” HD progressive scan CMOS
Lens	2.5, 3.6, 4.2, 6, 8 mm fixed focal length
Angle of View	• 2.5 mm F2.8: Diagonal 126°, Horizontal 123°, Vertical 70° • 3.6 mm, F1.6: Diagonal 99°, Horizontal 94°, Vertical 47° • 4.2 mm, F1.8: Diagonal 87°, Horizontal 80°, Vertical 43° • 6.0 mm, F1.6: Diagonal 60°, Horizontal 55°, Vertical 29° • 8.0 mm, F1.6: Diagonal 45°, Horizontal 40°, Vertical 22°
Camera Angle	• Pan: ±30° • Tilt: 0-90° (3.6, 4.2, 6, 8 mm lens), 30-60° (2.5 mm lens)
Minimum Illumination	0.2 Lux @ F=1.2
Synchronization	Internal
White Balance	ATW/AWB
Electronic Shutter	Auto (1/30 to 1/25000 sec)
S/N Ratio	50 dB (Gamma, Aperture, AGC, OFF; DNR ON)
DNR	Built-in DNR
WDR	Level 1-8, up to 115 dB
AGC (auto gain control)	2X, 4X, 8X, 16X, 32X, 64X
Flickerless Control	Automatic/50 Hz/60 Hz mode
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Black Level Control	High/Medium/Low
• Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	3 independent H.264 or MJPEG video streams
Video Viewing	• DynaStream™ support for automatic frame rate adjustment • CBR Pro™ for good image quality in limited bandwidth transmission • 3 privacy mask areas configurable • Adjustable image size and quality • Timestamp and text overlay • OSD (On screen Display) position adjustable • Maximum of 5 simultaneous unicast connections
Video Resolution and fps (frames per second)
• Audio
Audio Inputs	1, Line-in, rugged RCA connector; or 1 bulit-in microphone input
Audio Format	Mono, PCM (G.711)
• Network
Protocols	TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS,IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67
Ethernet	1 10/100BaseT(X) isolated Ethernet port, 4-pin M12 D-coded female connector
• Power Requirements
Input	Power-over-Ethernet (IEEE 802.3af)
Power Consumption	6 W (max.)
• Physical Characteristics
Housing	IP66 rain and dust protection, EN 62262 IK10 vandal-proof protection
Dimensions	Diameter: 110 mm (4.33 in); Height: 47 mm (1.85 in)
Weight	310 g (0.68 lb)
Installation	Surface or ceiling mounting
Note	Optional external housing and mounting accessories may be required.
• Alarms
Intelligent Video	Camera tamper
Video Motion Detection	3 independently configurable motion areas
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
• Security
Password	User level password protection
Filtering	By IP address
Encryption	HTTPS, SSH
• Environmental Limits
Operating Temperature	Standard model: -25 to 55°C (-13 to 131°F) Wide Temp. model: -40 to 70°C (-40 to 158°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m
Note	Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety	UL 60950-1
Rail Traffic	EN 50155*, EN 45545-2
*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here	www.moxa.com/doc/specs/EN_50155_Compliance.pdf
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
Shock	IEC 61373
Freefall	IEC 60068-2-31
Vibration	IEC 61373
Vandal Resistance	EN 62262, IK10 level
Fire Protection	EN 45545-2: 2013
• MTBF (mean time between failures)
Time	1,944,687 hrs
Standard	Telcordia TR/SR
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz
Memory	512 MB of memory
OS	Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0c or above
• Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website).
Standard	ONVIF Profile S
