Moxa VPort P06-2L28M - EN50155,FHD,H.264/MJPEG IP camera,M12 connector,1 audio input,PoE , 2.8mm Lens,-25 to 55C
by MOXA

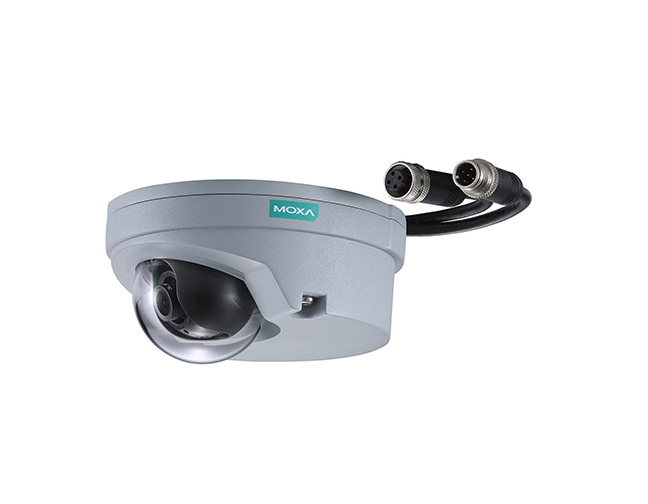

Moxa VPort P06-2L28M

The VPort 06-2 cameras are compact, 1080P (1920 x 1080), H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155,  and support a -25 to 55°C or -40 to 70°C operating temperature range. With a rugged M12 Ethernet port, SDXC slot for SD cards up to 1 TB, ONVIF Profile S standardization, built-in audio line port or microphone, PoE or 24 VDC power inputs, IP66-rated, and the option of changing the lens, the VPort 06-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications

Specifications

• micro SD slot: SDXC
• Digital input channels: 1
• Digital inputs:
  • +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA
• Connector: 5-pin A-coded male M12 connector with 20 cm cable
• PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
• Protocols:
  • TCP/IP
    IPv4/IPv6
    UDP
    HTTP
    RTP/RTSP
    ARP
    UPnP
    FTP
    TFTP
    NTP Client
    DNS
    QoS
    IGMP v3
    ICMP
    SNMPv1/v2c/v3
    DHCP Opt66/67
    HTTPS
    SIP
• Password: user-level password protection
• Filter: IP address
• Encryption: HTTPS, SSH
• No. of power inputs: 1
• Source of input power: PoE (IEEE 802.3af)
• Input current: 0.17A @ 48VDC
• Sensor: 1/3-in 1080P progressive scan CMOS
• Lens: f=2.5 mm, F1.6, Diagonal 120°, Horizontal 101°, Vertical 57°
• Minimum illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
• Synchronization: internal
• White balance: ATW/AWB
• Electronic Shutter: Auto, fixed (1/30 to 1/25000 sec)
• S/N ratio: maximum 50 dB (AGC off; DNR on)
• DNR (digital noise reduction): built-in 2D/3D DNR
• WDR: 100 dB
• AGC (auto gain control): 2X, 4X, 8X, 16X
• Flickerless control: automatic, 50 Hz, 60 Hz modes
• Image rotation: Flip, Mirror, 90°, 180°, 270° rotation
• Image setting: Manual tuning with saturation, sharpness, and contrast
• Camera angle: Pan: ±15°, Tilt: 0° to 90° (controlled manually)
• Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
• Video output: via Ethernet
• Video streams: 4 independent H.264 or MJPEG video streams
• Video viewing:
  • DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 10 simultaneous unicast connections, 50 multicast clients
• Audio format: mono, PCM (G.711) AAC
• Audio inputs: 1 x line-in, with M12 connector
• Video standards: ONVIF profile S
• Intelligent video: camera tampering detection
• video motion detection: 3 independently configurable areas
• Scheduling: daily repeat timing schedule
• Imaging: JPEG snapshots for pre/trigger/post alarm images
• Custom alarms: HTTP event servers for setting customized alarm actions
• FTP messaging: automatic transfer of stored images via FTP as event-triggered actions
• Pre-alarm buffer: 50 MB video buffer for JPEG snapshot images
• Video recording: event recordings stored on the SD cards
• Memory size: 2GB
• Operating system: windows 7 or above
• Browser: internet explorer 9.x or above
• Multimedia: directX 9.0C or above
• Housing:
  • IP66 rain and dust protection
    Metal housing, PC dome cover
    IK8 vandal resistant protection
• Installation: panel mounting
• Protection: PCB conformal coating is optional and provided on request. If conformal coating is required, please contact us.
• Operating temperature: -22~55ºC
