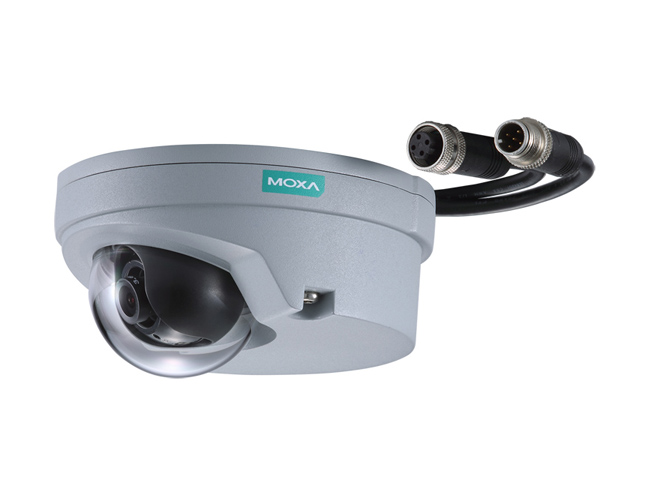

Moxa VPort P06-2M60M-CT - EN50155,FHD,H.264/MJPEG IP camera,M12 connector,1 MIC, PoE, 6.0mm Lens,-25 to 55 Degree C
by MOXA

The VPort 06-2, VPort P06-2M60M-CT, 1080P (1920x1080), H.264/ MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155, and support a -25 to 55°C or -40 to 70°C operating temperature range. With a rugged M12 Ethernet port, SDXC slot for SD cards 64 GB and larger, ONVIF Profile S standardization, built-in audio line port or microphone, PoE or 24 VDC power inputs, IP66 rain and dust protection, and the option of changing the lens, the VPort 06-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.

• Camera
Sensor	1/3” HD progressive scan CMOS
Lens	2.5 mm, 3.6 mm, 4.2 mm, 6 mm, 8 mm fixed focal lengths
Angle of View	• 2.5 mm, F1.6: Diagonal 120°, Horizontal 101°, Vertical 57° • 3.6 mm, F1.6: Diagonal 99°, Horizontal 70°, Vertical 39° • 4.2 mm, F1.6: Diagonal 82°, Horizontal 62°, Vertical 34° • 6.0 mm, F1.8: Diagonal 62°, Horizontal 43°, Vertical 24° • 8.0 mm, F1.6: Diagonal 42°, Horizontal 33°, Vertical 17°
Camera Angle	• Pan: ±15° • Tilt: 0 to 90° (3.6, 4.2, 6 mm lenses), 30 to 60° (2.5 mm lens)
Minimum Illumination	0.2 Lux @ F=1.2
Synchronization	Internal
White Balance	ATW/AWB
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
DNR	Built-in DNR
WDR	On/Off, up to 100 dB
AGC (auto gain control)	2X, 4X, 8X, 16X
Flickerless Control	Automatic, 50 Hz, 60 Hz modes
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, 90°, 180°, and 270° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
• Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	Up to 4 independent video streams
Video Resolution and FPS (frames per second)	NTSC PAL   Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 QVGA 320 x 240 30 320 x 240 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 FHD 1920 x 1080 30 1920 x 1080 25
Video Viewing	• DynaStream™ support for automatic frame rate adjustment • CBR Pro™ for good image quality in limited bandwidth transmissions • 3 privacy mask areas provided  • Adjustable image size and quality • Timestamp and text overlay • OSD (On Screen Display) position adjustable • Maximum of 5 simultaneous unicast connections
• Audio
Audio Inputs	1 line-in, or 1 built in to the microphone input
Audio Format	G.711, AAC
• Network
Protocols	TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67
Ethernet	1 10/100BaseT(X) Ethernet port, 4-pin M12 D-coded female connector
• Local Storage
SD Socket	Micro SD socket
Interface	SDXC
• GPIO
Digital Inputs	1, max. 8 mA; Low: +13 V to 30 V; High: -30 V to +3 V
• Power Requirements
Input Voltage	VPort P06-2 (PoE model): PoE (IEEE 802.3af) VPort 06-2 (DC model): 12 to 24 VDC with DB9 connector
Input Current	0.38 to 0.86 A
Power Consumption	VPort P06-2: 8.1 W (max.) VPort 06-2: 9 W (max.)
• Physical Characteristics
Housing	IP66 rain and dust protection, EN 62262 IK8 vandal proof metal housing
Dimensions	110 x 115.5 x 61.8 mm (4.33 x 4.54 x 2.43 in)
Weight	620 g (1.37 lb)
Installation	Surface or ceiling mounting  Note: Optional external housing and mounting accessories may be required.
• Alarms
Intelligent Video	Camera tampering
Video Motion Detection	3 independently configurable motion areas
Shock	G sensor for shock detection
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	50 MB video buffer for JPEG snapshot images
• Security
Password	User level password protection
Filtering	By IP address
Encryption	HTTPS, SSH
• Environmental Limits
Operating Temperature	Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m  Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety	UL 60950-1
Rail Traffic	EN 50155*, GB/T 24338.4-2009  *This product is suitable for rolling stock railway applications, as defined  by the EN 50155 standard. For a more detailed statement, click here:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
EMC	EN 55032/24
EMI	FCC Part 15, CISPR 32 class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
Shock	IEC 61373
Freefall	IEC 60068-2-32
Vibration	IEC 61373
Vandal Resistance	EN 62262, IK8 level  Note: Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time	977,972 hrs
Standard	Telcordia TR/SR
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz
Memory	512 MB of memory
OS	Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Browser	Internet Explorer 9 or above
Multimedia	DirectX 9.0c or above
• Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest SDK version is available for download from Moxa’s website).
Standard	ONVIF Profile S
