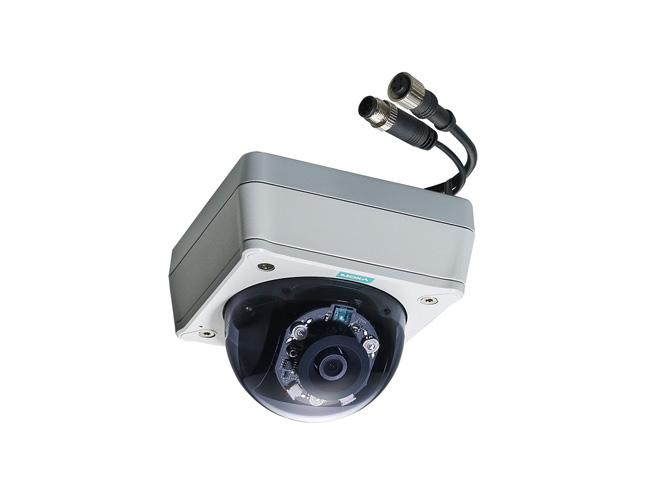

| • Camera |
| Sensor |
1/2.7” HD progressive scan CMOS |
| Lens |
3.6, 8 mm fixed focal length |
| Angle of View |
• 3.6 mm, F1.6: Diagonal 120°, Horizontal 96°, Vertical 56°
• 8.0 mm, F1.8: Diagonal 48°, Horizontal 38°, Vertical 24° |
| Illumination (low light sensitvity) |
• Color: 0.2 lux @ F1.2
• B/W: 0.05 lux @ F1.2 (0 lux if IR illuminator is on) |
| Camera Angle |
Pan 350°, Tilt 65° (controlled manually) |
| ICR Control (for day & night) |
Auto |
| IR Illumination |
3 IR LED illuminators, max. 5 meter effective distance.
On/Off controlled manually (night mode) or by the light sensor. |
| Synchronization |
Internal |
| White Balance |
ATW/AWB |
| Electronic Shutter |
Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio |
50 dB (Gamma, Aperture, AGC, OFF; DNR ON) |
| DNR |
Built-in |
| WDR |
Levels 1-8, up to 115 dB |
| AGC (auto gain control) |
2X, 4X, 8X, 16X, 32X, 64X |
| Flickerless Control |
Automatic / 50 Hz / 60 Hz |
| Auto Exposure |
Level ±5 |
| Image Rotation |
Flip, Mirror, and 180° rotation |
| Image Setting |
Manual tuning with saturation, sharpness, and contrast |
| Black Level Control |
High/Medium/Low |
| • Video |
| Video Compression |
H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output |
via Ethernet |
| Video Streams |
3 independent H.264 or MJPEG video streams |
| Video Resolution and FPS (frames per second) |
|
NTSC |
PAL |
|
Size |
Max. FPS |
Size |
Max. FPS |
QCIF |
176 x 112 |
30 |
176 x 144 |
25 |
CIF |
352 x 240 |
30 |
352 x 288 |
25 |
VGA |
640 x 480 |
30 |
640 x 480 |
25 |
4CIF |
704 x 480 |
30 |
704 x 576 |
25 |
Full D1 |
720 x 480 |
30 |
720 x 576 |
25 |
SVGA |
800 x 600 |
30 |
800 x 600 |
25 |
HD |
1280 x 720 |
30 |
1280 x 800 |
25 |
WXGA |
1280 x 800 |
30 |
1280 x 800 |
25 |
|
| Video Viewing |
• CBR Pro™ for good image quality in limited bandwidth transmissions
• DynaStream™ support for automatic frame rate adjustment
• 3 configurable privacy mask areas
• Adjustable image size and quality
• Timestamp and text overlay
• OSD (On Scr |
| • Audio |
| Audio Inputs |
1, built-in microphone |
| Audio Format |
Mono, PCM (G.711) |
| • Network |
| Protocols |
TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67 |
| Ethernet |
1 10/100BaseT(X) Ethernet port, 4-pin M12 Dcode female connector, with 20 cm cable |
| • GPIO |
| Digital Inputs |
1, 5-pin M12 male connector with 20 cm cable
• High: +13 V to +30 V
• Low: -30 V to +3 V |
| • Power Requirements |
| Input |
Power-over-Ethernet (IEEE 802.3af) |
| Power Consumption |
8 W (max.) |
| • Physical Characteristics |
| Housing |
Metal housing and dome cover with IP66 rain and dust protection |
| Dimensions |
125 x 125 x 120.7 mm (5.6 x 5.6 x 4.8 in) |
| Weight |
820 g (1.8 lb) |
| Installation |
Surface (ceiling) mounting, flush (recessed) mounting |
| • Alarms |
| Intelligent Video |
Camera tamper |
| Video Motion Detection |
3 independently configurable areas |
| Scheduling |
Daily repeat timing schedule |
| Imaging |
JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms |
HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging |
Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer |
12 MB video buffer for JPEG snapshot images |
| • Security |
| Password |
User level password protection |
| Filtering |
By IP address |
| Encryption |
HTTPS, SSH |
| • Environmental Limits |
| Operating Temperature |
Standard models: -25 to 55°C (-13 to 131°F)
Wide Temp. model: -40 to 70°C (-40 to 158°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications |
| Safety |
UL 60950-1 |
| Rail Traffic |
EN 50155*
*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here:www.moxa.com/doc/specs/EN_50155_Compliance.pdf |
| EMI |
FCC Part 15, CISPR (EN 55032) Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
|
| Shock |
IEC 61373 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 61373 |
| Vandal Resistance |
EN 62262, IK10 level |
| Salt Spray Test |
ASTM B117
Note: Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) |
| Time |
1052184 hrs |
| Standard |
Telcordia TR/SR |
| • Warranty |
| Warranty Period |
5 years |
| Details |
See www.moxa.com/warranty |
| • Minimum Viewing System Requirements |
| CPU |
Pentium 4, 2.4 GHz |
| Memory |
512 MB of memory |
| OS |
Windows XP with SP3 or above, Windows 7 |
| Browser |
Internet Explorer 8.x or above |
| Multimedia |
DirectX 9.0c or above |
| • Software Development |
| VPort SDK PLUS |
Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website). |
| Standard |
ONVIF Profile S |
