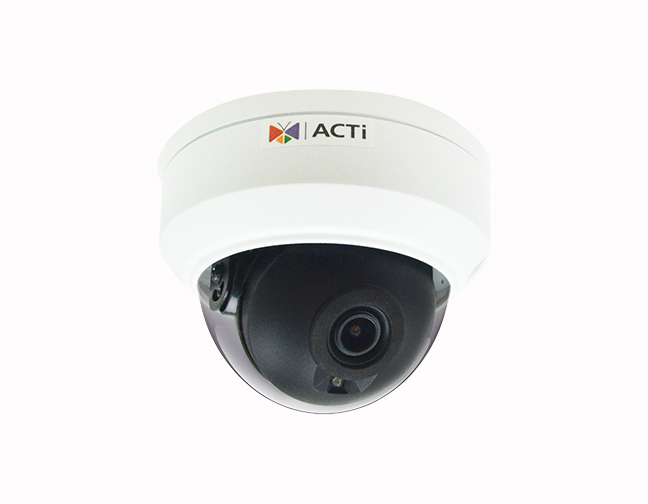

ACTI Z710 - *Discontinued* - 8MP Outdoor Mini Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
by ACTi
|
|
|
|
- 8 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Superior WDR
- H.265 Compression
- Wide Angle
|
|
|
8MP Outdoor Mini Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Device
| Product Type |
Mini Dome |
| Maximum Resolution |
8MP |
| Application Environment |
Outdoor |
| Image Sensor |
Progressive Scan CMOS |
| Sensor Size |
1/3 " |
| Day / Night |
Yes |
| Low Light Sensitivity |
Superior |
| Minimum Illumination |
Color: 0.05 lux at F2.0 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter |
Yes |
| IR LED |
Adaptive IR LED (850 nm) |
| IR Working Distance |
40m |
| Electronic Shutter |
1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio |
56 dB |
Lens
| Focal Length |
Fixed focal, f2.8mm |
| Aperture |
F2.0 |
| Iris |
Fixed iris |
| Focus |
Fixed focus |
| Horizontal Viewing Angle |
90° |
| Vertical Viewing Angle |
48.7° |
| Viewing Angle Adjustment |
Pan: 0°-360°, Tilt: 0°-68°, Rotation: 0°-360° |
Video
| Compression |
H.265, H.264 (Baseline/ Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution |
20 fps at 3840 x 2160
30 fps at 2944 x 1656
30 fps at 2560 x 1440
30 fps at 1920 x 1080
20 fps at 1280 x 720
20 fps at 704 x 576 |
| Multi-Streaming |
Simultaneous triple streams |
| Wide Dynamic Range |
Superior WDR (120 dB) |
| Image Enhancement |
White Balance, Backlight compensation (BLC), Strong Light Suppression, Brightness, Contrast, Saturation, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction |
2D + 3D DNR |
| Privacy Mask |
4 configurable regions |
| Text Overlay |
Yes |
| Built-in Analytics |
Tampering Detection |
| Image Orientation |
Flip, Mirror |
Network
| Network Protocol & Service |
IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SSL, QoS |
| Ethernet Port |
1 x Ethernet (10/100 Base-T), RJ-45 connector |
Integration
| ONVIF Compliant |
Yes, Profile S |
Interface
General
| Power Source |
DC 12V +/- 25%, PoE (IEEE802.3af) |
| Weight |
384g (0.85lb) |
| Dimensions |
(Ø x H): 109mm x 81mm (4.3" x 3.2") |
| Environmental Casing |
Weatherproof (IP68), Vandal proof (IK10) |
| Operating Temperature |
-35°C ~ 60°C (-31°F ~ 140°F) |
| Operating Humidity |
10% - 95% RH |
| Approvals |
CE Class B, FCC Class B, IP68, IK10 |
|
|
|
|
| |
