45MR-2606 - Module for ioThinx 4500 Series, 8 DIs 24VDC PNP 8 DOs 24VDC source -20 to 60 Degree C operating temperature
by MOXA

Introduction

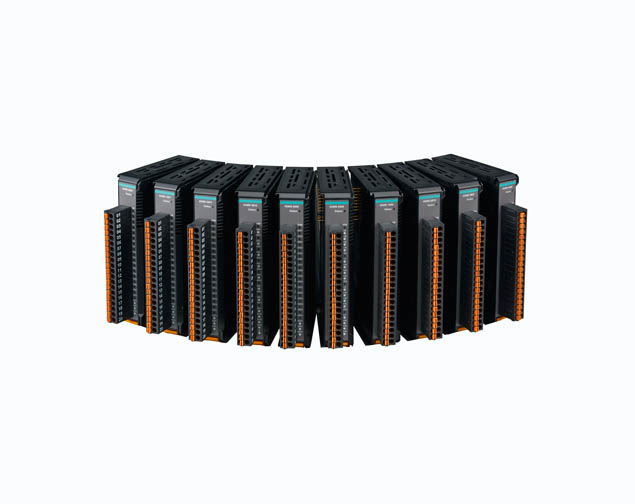

Moxa’s ioThinx 4500 Series (45MR) Modules, 45MR-2606, are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.

Easy Tool-Free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

Input/Output Interface

• Digital Input Channels

  45MR-2606 Series: 8

• Digital Output Channels

  45MR-2606 Series: 8


Digital Inputs

• Connector

  Spring-type Euroblock terminal

• Sensor Type

  Dry contact
  Wet contact (NPN or PNP)

• I/O Mode

  45MR-2606 Series: DI or event counter (only supports the first 2 channels)


• Dry Contact

  On: short to FP+/FP-
  Off: open

• Wet Contact (DI to FP-)

  On: 10 to 30 VDC
  Off: 0 to 3 VDC

• Wet Contact (DI to FP+)

  On: 10 to 30 VDC
  Off: 0 to 3 VDC

• Counter Frequency

  1 kHz

• Digital Filtering Time Interval

  Software configurable

Digital Outputs

• Connector

  Spring-type Euroblock terminal

• I/O Type

  45MR-/2606 Series: Source


• I/O Mode

  45MR-2606 Series: DO or pulse output (only supports the first 2 channels)


• External Power

  12/24 VDC

• Pulse Output Frequency

  1 kHz

• Over-Voltage Protection

  45 VDC

• Over-Temperature Shutdown

  175°C (typical), 150°C (min.)

• Current Rating

  500 mA per channel

Power Consumption

• System Power

  45MR-2606 Series: 62.7 mA @ 3.3 VDC


• Field Power

  45MR-2606 Series: 15.4 mA @ 12 VDC


Physical Characteristics

• Weight

  45MR-2606 Series: 77.4 g (0.171 lb)


• Dimensions

  19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)

• Housing

  Plastic

• Installation

  DIN-rail mounting

• Wiring

  I/O cable, 18 to 24 AWG

• Strip Length

  I/O cable, 9 to 10 mm

Environmental Limits

• Operating Temperature

  Standard Models: -20 to 60°C (-4 to 140°F)
  Wide Temp. Models: -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing) The relays of the 45MR-2404 Series may malfunction when operating in high condensation environments below 0°C.

• Altitude

  Up to 4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• Shock

  IEC 60068-2-27

• Vibration

  IEC 60068-2-6

Declaration

• Green Product

  RoHS, CRoHS, WEEE

MTBF

• Time

  45MR-2606 Series: 638,652 hrs


• Standards

  Telcordia SR332
