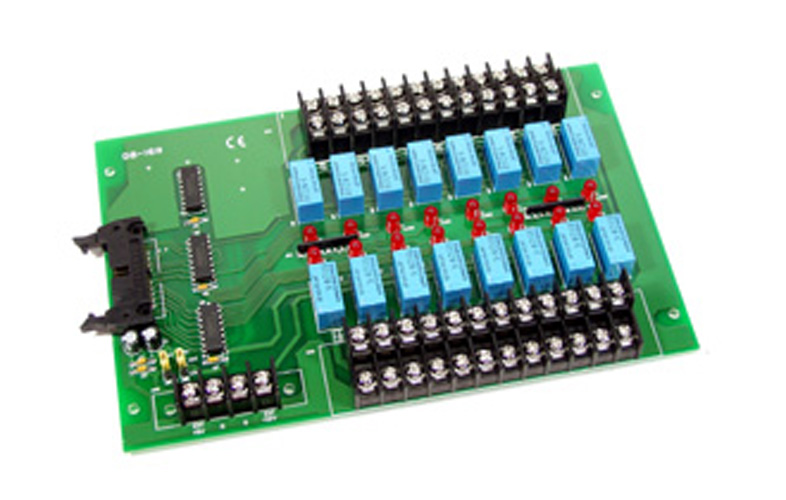

The DB-16R is a 16 channel Relay Output Board. It consists of 16 form c relays for efficient switching of load by programmed control. It is connector and functionally compatible with our 785 series boards with industrial type terminal blocks. The DB-16R can be used by our A-82x board or any other compatible board. The relays are energized by applying a 5 volt signal to the appropriate relay channel on the 20-pin flat cable connector. Sixteen enunciator LEDs, one for each relay, light up when their associated relay is activated . This board provides a screw terminial for power to avoid overloading your PC's power supply.
- Form C relays
- Accepts a 20-pin connector to control 16 form c relays
- For use with A-82X, DIO-64
- Digital output port or any compatible digital output port
- Each LED light when corresponding relay is activated
- Screw terminals for field wiring
- Applications:
- On/off control
- Energy management
- Test Automation
- Process Control
| Type |
SPDT( form C ) |
| Nominal load |
0.5 A /120 VAC, 1A /24 VDC |
| Max. Switching power |
60VA, 24W |
| Max. Switching Voltage |
120VAC, 60VDC |
| Max. Switching Current |
1A |
| Life Expectancy |
Mechanical ( 2 x 10 ), Electrical ( 2 x 10 ) |
| Release Time Value |
Operate ( 6 ms ) |
| Control Logic |
Input TTL high (+5V) , relay on |
| Power Consumption |
+12V @ 528mA max. |
| +5V @150mA max. |
| Dimensions |
205mm x 114mm |
| Operating Temperature |
0° - 60°C |
| Storage Temperature |
-20°C ~ 70°C |
| Humidity |
5% to 90 % noncondensing |
| FORM C RELAY |
|
