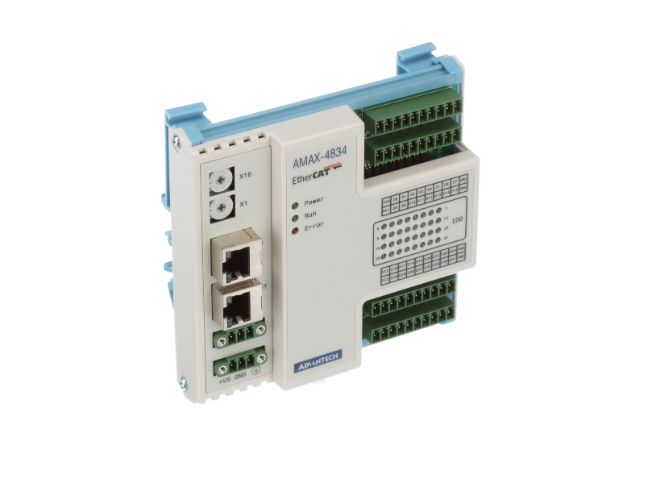

Advantech AMAX-4834-AE - 32-channel IDO EtherCAT Remote I/O module
by Advantech
|
|
|
|
AMAX-4834-AE_SUMMARY.html
- Suitable for EtherCAT networks
- 32-ch digital output with 2,500 VDC isolation
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 server IDs
|
|
|
AMAX-4834-AE_DESCRIPTION.html
The AMAX-4834 is an industria EtherCAT SubDevice module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet.
AMAX-4834-AE.html
| Category |
Attribute |
Value |
| General |
Connectors |
2 x RJ45, 4 x 10-pin terminal block, 1 x 3-pin screw terminal block |
| Isolated Digital Output |
Channels |
32 |
| Isolated Digital Output |
Isolation Protection |
2,500 VDC |
| Isolated Digital Output |
Output Type |
Sink |
| Isolated Digital Output |
Output Voltage |
5~40 VDC |
| Isolated Digital Output |
Sink Current |
350 mA/channel (sink) @ 25 C ; 250 mA/channel (sink) @ 60 C |
| EtherCAT |
Cycle Time |
200 us |
|
|
