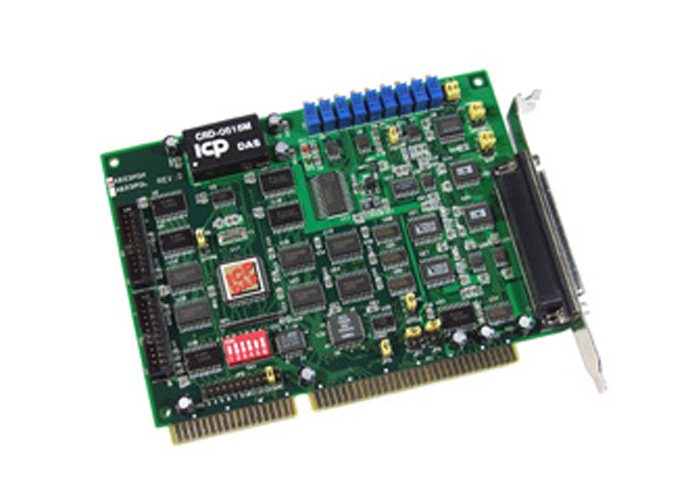

A-823PGH/S - A-823PGH + Daughter Board DB-8225 by ICP DAS
|
|
|
125KS/s 16 Channel, 12 bit Analog Input ISA Board, 2 Channel Unipolar 12 bit Analog Output with 16 Digital Input/16 Digital Output. (High Grain). Includes Daughter Board DB-8225. Includes one CA-4002 D-Sub Connector.
|
|
|
The A-823PGH/L is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-823PGH/L offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bits resolution. In addition, The A-823PGH/PGL has 16 digital input, 16 digital output , and one timer/counter channel. The A-823PGH Provides gain of 0.5, 1, 5, 10, 50 ,100 , 500 , 1000 while the A-823PGL provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 125 k Sample/Sec., DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended or 8 differential input channels
- 125 k/s sampling rate
- Two 12-bit analog output channels
- Analog Output Range : 0 ~ 5 V , 0 ~ 10 V
- Software programmable gain :
A-823PGL (Low Gain Version ) : 0.5 , 1 , 2 , 4 , 8
A-823PGH(High Gain Version) : 0.5 , 1 , 5 , 10 , 50 , 100 , 500 , 1000
- Interrupt handling
- A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 digital input & 16 digital output
- 37 pin D-Sub connector
Analog Input |
Channels |
16 single-ended/8 differential |
A/D Converter |
12-bit, 8 μs conversion time |
Sampling Rate |
125 kS/s. max. |
Over voltage Protection |
Continuous +/-35 Vp-p |
Input Impedance |
10 MΩ/6 pf |
Trigger Modes |
Software, Pacer, External, Event |
Data Transfer |
Polling, Interrupt, DMA |
Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
Zero Drift |
15 ppm/°C of FSR |
Analog Output |
Channels |
2 independent |
Resolution |
12-bit |
Accuracy |
0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V |
Output Range |
Unipolar: 0 ~ 5 V, 0 ~10 V or +/- 5 V, +/- 10 V
Bipolar: +/-10 V |
Output Driving |
+/- 5 mA |
Slew Rate |
0.6 V/μs |
Output Impedance |
0.1 Ω max. |
Operating Mode |
Software |
Digital Input |
Channels |
16 |
Compatibility |
5 V/TTL |
Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
Response Speed |
1.0 MHz (Typical) |
Digital Output |
Channels |
16 |
Compatibility |
5 V/TTL |
Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
Output Capability |
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V |
Response Speed |
1.0 MHz (Typical) |
Timer/Counter |
Channels |
3 independent |
Resolution |
16-bit |
Compatibility |
5 V/TTL |
Input Frequency |
10 MHz max. |
Reference Clock |
Internal: 2 MHz |
General |
Bus Type |
ISA |
I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
Dimensions (L x W x D) |
163 mm x 124 mm x 22 mm |
Power Consumption |
960 mA @ +5 V |
Operating Temperature |
0 ~ 60 °C |
Storage Temperature |
-20 ~ 70 °C |
Humidity |
5 ~ 85% RH, non-condensing |
Analog Input Range |
Model |
A-823PGL (Low-Gain) |
Gain |
0.5 |
1 |
2 |
4 |
8 |
Unipolar (V) |
|
0 ~ 10 |
0 ~ 5 |
0 ~ 2.5 |
0 ~ 1.25 |
Bipolar (V) |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.0625 |
Sampling Rate Max. |
125 kS/s |
125 kS/s |
125 kS/s |
125 kS/s |
125 kS/s |
Model |
A-823PGH (High-Gain) |
Gain |
0.5 |
1 |
5 |
10 |
50 |
100 |
500 |
1000 |
Unipolar (V) |
|
0 ~ 10 |
|
0 ~ 1 |
|
0 ~ 0.1 |
|
0 ~ 0.01 |
Bipolar (V) |
+/- 10 |
+/- 5 |
+/- 1 |
+/- 0.5 |
+/- 0.1 |
+/- 0.05 |
+/- 0.01 |
+/- 0.005 |
Sampling Rate Max. |
125 kS/s |
125 kS/s |
80 kS/s |
80 kS/s |
10 kS/s |
10 kS/s |
1 kS/s |
1 kS/s |
|
|
