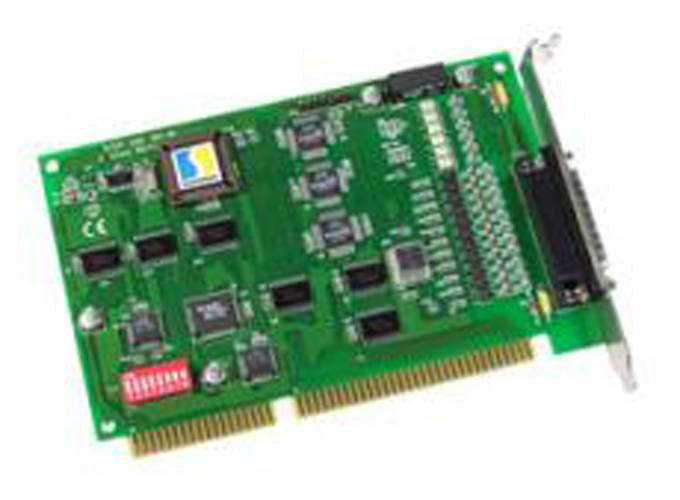

STEP-200 is a plug-in, 2-axis, command-based step motor controlled board for the IBM PC/XT/AT and compatible computers. It can also be used in pulse-type servo motor controls (pulse input type). This board has an μP built-in . This μP performs a variety of motion control commands and shares the loading of a host computer. 2K bytes-FIFO is introduced as a command buffer. This buffer provides 1360ms buffer time. The hardware architecture of STEP 200 is good for windows operation systems. The STEP 200 provides for DOS, Windows 95 and Windows NT drivers. It offers real time motion control solutions in windows operating environments.
- 2-axis independent, simultaneous stepper motor control / servo motor control ( pulse input type )
- DOS, Windows 95, Windows NT drivers
- Embedded Micro-processor
- Command type interface
- linear, circular interpolation
- Acceleration / Deceleration : Automatic trapezoidal acceleration / deceleration
- Output polarity can be programmable
- 5 optical isolated digital inputs per axis for limit switches
