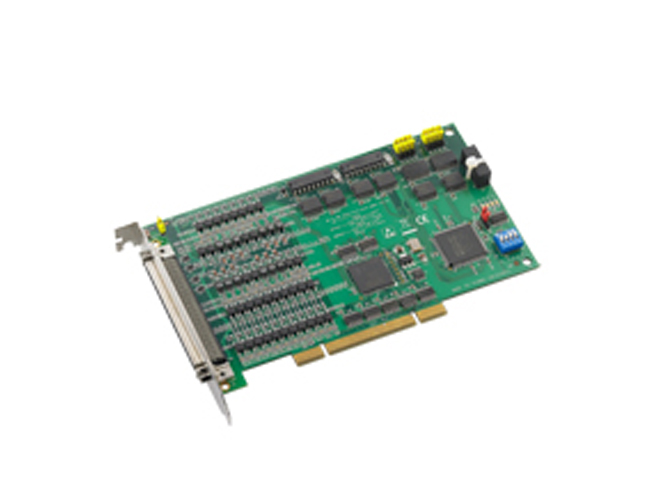

Advantech PCI-1240U-B2E
4-axis Stepping and Servo Motor Control Universal PCI Card
- Independent 4-axis motion control
- Hand wheel and jog function
- 2/3-axis linear interpolation function
- 2-axis circular interpolation function
- Continuous interpolation function
- Programmable T/S-curve acceleration/deceleration rate
- Up to 4 MPPS output for each axis
- Two pulse output types: CW/CCW or Pulse/Direction
- Up to 1 MHz encoder input for each axis
- Two encoder pulse input types: A/B phase or Up/Down
- Constant speed control
- Position management and software limit switch function
- BoardID™ switch
