Adlink PCI-RTV24 - Angelo RTV24,Four channels real-time video frame grabber (PCI).
by ADLINK
|
|
|
|
- Four color video digitizers operating in parallel
- Up to 120 fps in 32-bit, 33MHz/66MHz PCI bus
- Color (PAL/NTSC), monochrome (CCIR/EIA) camera supported
- Up to 16 channels extension
- On-board TTL I/O lines
- Built-in watchdog timer
- User friendly ViewCreator™ utility
- Software trigger supported
|
|
|

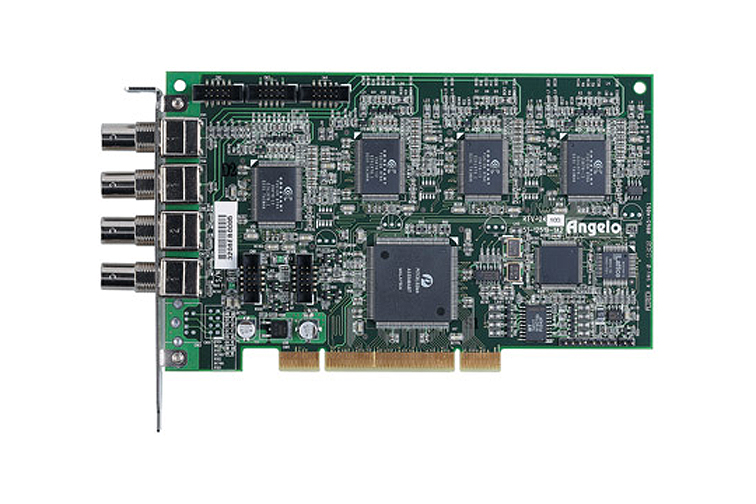

The PCI-RTV24 acquisition board is designed without compromise for machine vision and video surveillance applications. They are the ideal devices for PC-based multiple-channel vision application. The supported resolution is programmable and includes square-pixel (640 x 480 or 768 x 576) and broadcast resolution. Before captured images are transferred to the PC's memory, images can be scaled down using available selectable ratios. System integrators also benefit from a watchdog for fault-tolerant applications and easy-to-use standard connectors.
|
|
|
|
