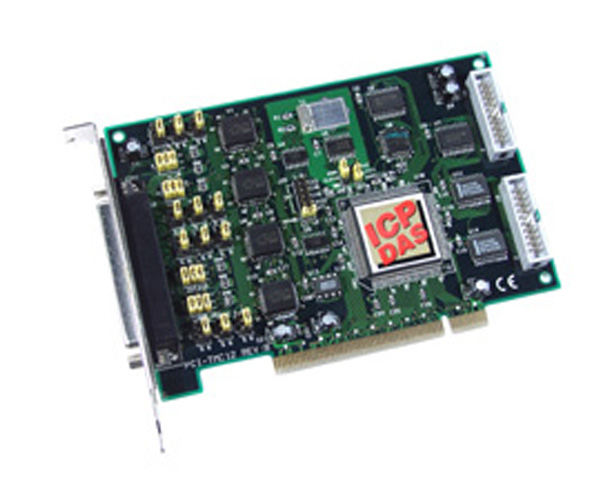

The PCI-TMC12A is a PCI-Bus general purpose timer / counter and digital I/O board. It provides twelve channels of 16-bit timer / counter. Tw internal clock source (8M / 1.6M and 0.8M / 80K) are selected by jumpers. Four 8254 chips provides a variety of powerful timer / counter function modes to match your industrail and laboratory applications.
- On board four 8254 timer / counter chips
- Twelve independent 16-bit timers / counters
- Twelve external clock inputs
- Twelve external gate control inputs
- Twelve timer / Counter Outputs
- 16-bit Timer / Counter can be cascated to 32 / 48 -bit
- Gate input can be from external or previous timer / counter output
- Four interrupt sources
- Two internal clock sources
- 16-channel of D/I and D/O
- Old program designed for tmc12 can be executed on tmc12A without any modification
- Flexible interrupt mechanism
- Hardware mechanism for 2 starting-clock generation
- Sofrtware:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Driver for LINUX
