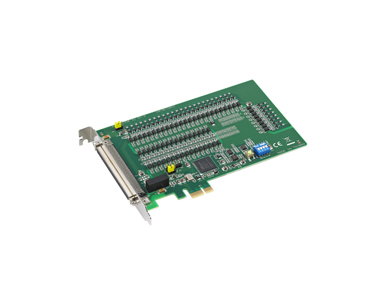

PCIE-1756H-AE - 64-ch Isolated Digital I/O PCI Express Card

Advantech PCIE-1756H-AE - 64-ch Isolated Digital I/O PCI Express Card
by Advantech

Wide output range (5 ~ 40 VDC)
High sink current on isolated output channels (500mA max./ch)
2,000 VDC ESD protection
High-voltage isolation (2,500 VDC)
Interrupt handling capability
Wide input range (10 ~ 30 VDC)
Either +/- voltage input for DI by group
High over-voltage protection (70 VDC)
High-voltage isolation (2,500 VDC)
Output status read-back
Keeps the output settings and values after system hot reset
Channel-freeze function

Mfg SKU # :

PCIE-1756H-AE

Our Price :

$341.20

Description
Specification
Datasheet

The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver - DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.
