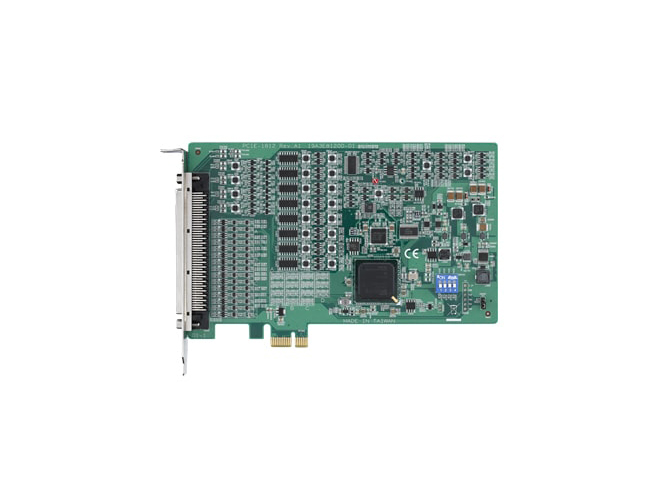

Advantech PCIE-1812 - 250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card
by Advantech
|
|
|
|
- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full auto-calibration
- 2 analog triggers and 2 digital triggers for AI/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
- Support for Microsoft Windows 10, 8 and 7
|
|
|
The PCIE-1812 is a simultaneous-sampling multifunction DAQ card to meet a wide range of application requirements. The devices can simultaneously sample 8 AI channels with differential input configuration in order to achieve maximum noise elimination. It also provide 2-CH 16-bit analog outputs and with waveform generation capability, which can be performed together with analog input functions.
| Analog Input |
| Channels |
8 |
| Input Range |
0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V, ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V |
| Resolution(Bits) |
16-bit |
| Sampling Rates(S/s) |
250 KS/s (per channel) |
| Analog Output |
| Channels |
2 |
| Output Ranges |
0~5 V, 0~10 V, ±5 V, ±10 V |
| Resolution |
16-bit |
| Update Rate(S/s) |
3 MS/s |
| Counter/Encoder Input |
| Channels |
4 |
| Counting Range |
32-bit |
| Mode |
Counter (up/down, bi-direction, up, A/B Phase) |
| Digital Input |
| Channels |
32 (TTL) |
| Digital Output |
| Channels |
32 (TTL) |
General |
| Programming Language |
C#,C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
|
|
|
|
