The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in 80186 80M Hz CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.
The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in 80186 80M Hz CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.
Applications
Industrial Machinery
Building Automation
Medical
Maritime
Restaurant Appliances
Laboratory Equipment & Research
Hardware Features
Firmware Features
Firmware Feature
Specifications
DeviceNet Version
DeviceNet Specification Volume I & II, Release 2.0
Number of Slave Nodes
10(Max) nodes inside the board
Baud Rate
125K, 250K, 500K
Support Message Groups
Group 2 only Server
UCMMs
Not Support
I/O Operating Modes
Poll, Bit-Strobe, Change of State/ Cyclic
No. of Fragment I/O
up to 512 bytes of input & 512 bytes output data
MAC ID Setting
Programmable
Baud Rate Setting
Programmable
Virtual Slave concept
Toolkit
The software utility includes various useful functions. These functions help users to manage and configure the DeviceNet virtual slave devices. It helps the users to develop the DeviceNet virtual slave station projects easily and quickly. The users can also develop another toolkit on your own purpose.
LabView Tool
In order to apply the PISO-DNS100 to DeviceNet network with NI LabVIEW, we provides a LabVIEW 8.0 toolkit for the purpose. It is a useful tool to develop the DeviceNet Slave application in NI LabVIEW environment by using PISO-DNS100. It is easy to use and can help user to rapidly reduce their program development cycle. Download
Establish Connection Flowchart
DeviceNet For LabVIEW Application Tool
In order to develop complex DeviceNet applications, we provide a LabVIEW driver for this purpose. The PISO-DNS100(U) LabVIEW driver is the function reference to the DeviceNet slave. We provide many useful VI functions in the LabVIEW environment. We also have the "DeviceNet Slave Utility" to configure the DeviceNet hardware in your PC. The users not only operate easily and develop application rapidly, but also reduce the complexity of applications. The users can communicate with the remote DeviceNet master in a few simple steps and need not to know about the detail of the DeviceNet protocol. It is the best tool to develop various distributed systems and other industrial applications software on DeviceNet network.
Model Name

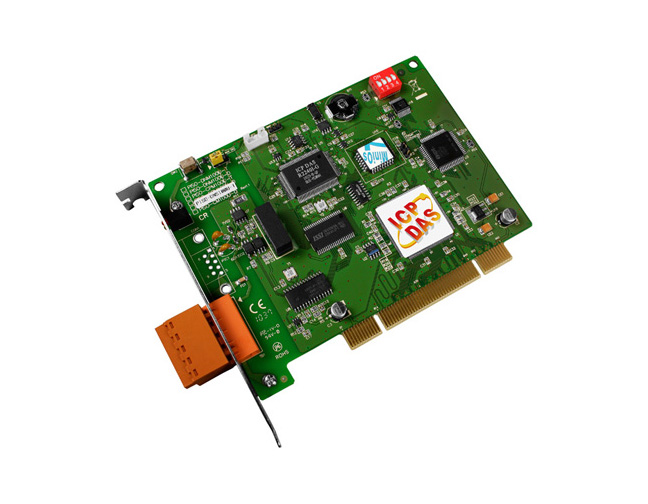

PISO-DNS100U-D
Bus Interface
Type
Universal PCI supports both 5 V and 3.3 V PCI bus
Board No.
By DIP switch
CAN Interface
Controller
NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz
Transceiver
NXP 82C250
Channel number
1
Connector
5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
Baud Rate (bps)
125 k, 250 k, 500 k
Transmission Distance (m)
Depend on baud rate (for example, max. 1000 m at 50 kbps )
