Advantech PCIE-1122B-AE - 2-port PCI Express CameraLink, Base
by Advantech
|
|
|
|
Axion 2xB, 2-port PCI Express Camera Link, Base Frame Grabber
- Half-Size PCI Express Board Gen 2.0 x4
- Camera Link clock up to 85 MHz
- Supports 2 Base CL cameras
- Supports PoCL and non-PoCL cameras with SafePower
- Image sizes up to 268,435,456 x 16,777,216
- Independent I/O (trigger, encoder, strobe, etc) for each camera
- Supports quadrature encoders
- On board timing sequencers
|
|
|

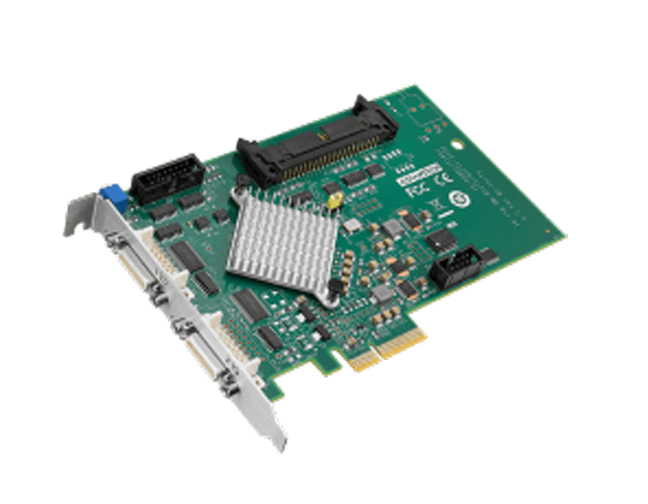

Advantech PCIE-1122B-AE
The Axion family has been designed to work with all Camera Link compliant cameras. It can capture almost any resolution image at any frame rate. It handles all CL tap formats, Base/ Medium/Full, as well as 80-bit (Full+) cameras. In fact, the 2xE can acquire from two 80-bit/85 MHz cameras simultaneously, while the 4xB can acquire from four Base cameras at the same time. All BitFlow Frame Grabbers come with sophisticating I/O functionality. They provide support for quadrature encoder controlled acquisition. Many different trigger configura- tions are supported for a wide range of industrial applications. Generic I/O is also include for controlling strobes, solenoids, etc. Adding the Axion to your application is simple with our SDK, which supports both Windows and Linux. Applications can be developed using C/C++/C# or Python and our sophisticated buffer management APIs. In addition, free drivers can be downloaded from BitFlow’s web site for most 3rd-party machine vision software packages. No Machine Vision challenge is too complicated for the Axion-CL.
|
|
|
|
