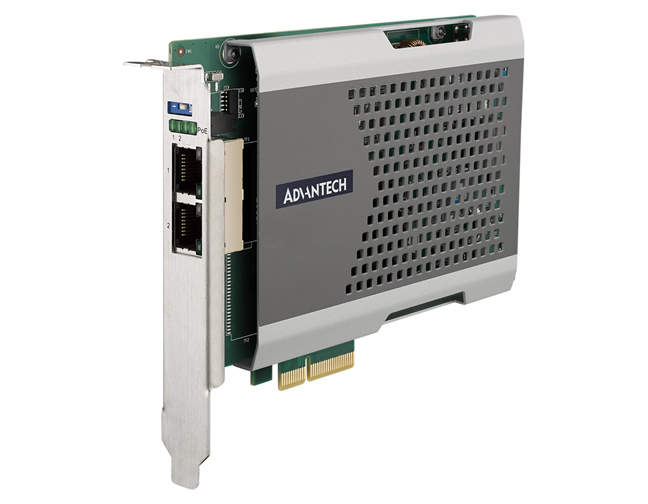

Advantech PCIE-1672E-BE - 2-port PCI express GbE card, on/off per port
by Advantech
|
|
|
|
- Intel I350 1GbE Ethernet Controller
- PCI Express Gen2 x4 compliant
- Compliance with IEEE 802.3at-2009 (PoE+), up to 2 ports delivers up to 25.4 W of power via power jet supply and protect by recoverable eFuse
- Powered Device (PD) auto detection and classification
- Supports IEEE 802.3u Auto-Negotiation
- Supports Jumbo frame (9,500 byte) and link aggregation
- Supports IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
- PoE on/off control by Hardware switch
- Protect shell reduce the risk of damage from system installation
|
|
|
Advantech PCIE-1672E-BE
The PCIE-1672/74E-BE PoE+ (Power over Ethernet) PCIE series is PCI express Network Interface Card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3at (PoE+) Compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672/PCIE-1674E-BE can boost then provides up to 25.4 watts at 48 VDC power to maximum 2 PoE+ ports on each module. It allows power to be supplied to connected devices, such as PoE GigE cameras in machine vision inspection systems. The PCIE-1672/PCIE-1674E-BE is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Machine Vision System, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
|
|
|
|
