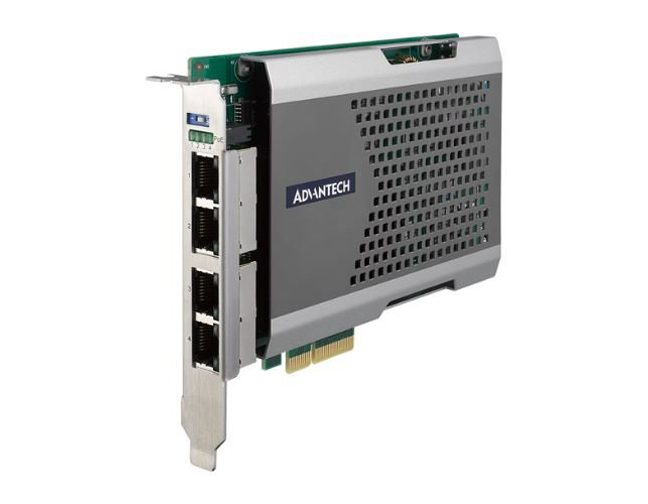

Advantech PCIE-1674E-BE - 4-port PCI express GbE card, PoE hardware on/off
by Advantech
|
|
|
|
4-ports PCI Express PoE+ GigE Vision Frame Grab
- Intel I350 1GbE Ethernet Controller
- PCI Express Gen2 x4 compliant
- Compliance with IEEE 802.3at-2009 (PoE+), up to 2 ports delivers up to 25.4 W of power via power jet supply and protect by recoverable eFuse
- Powered Device (PD) auto detection and classification
- Supports IEEE 802.3u Auto-Negotiation
- Supports Jumbo frame (9,500 byte) and link aggregation
- Supports IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
- PoE on/off control by Hardware switch
- Protect shell reduce the risk of damage from system installation
|
|
|
Advantech PCIE-1674E-BE
The PCIE-1672/74E-BE PoE+ (Power over Ethernet) PCIE series is PCI express Network Interface Card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3at (PoE+) Compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672/PCIE-1674E-BE can boost then provides 54 VDC PoE+ power output with total power budge 60W and maximum 25.4W per port. It allows power to be supplied to connected devices, such as PoE GigE cameras in machine vision inspection systems. The PCIE-1672/PCIE-1674E-BE is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Machine Vision System, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
|
|
|
|
