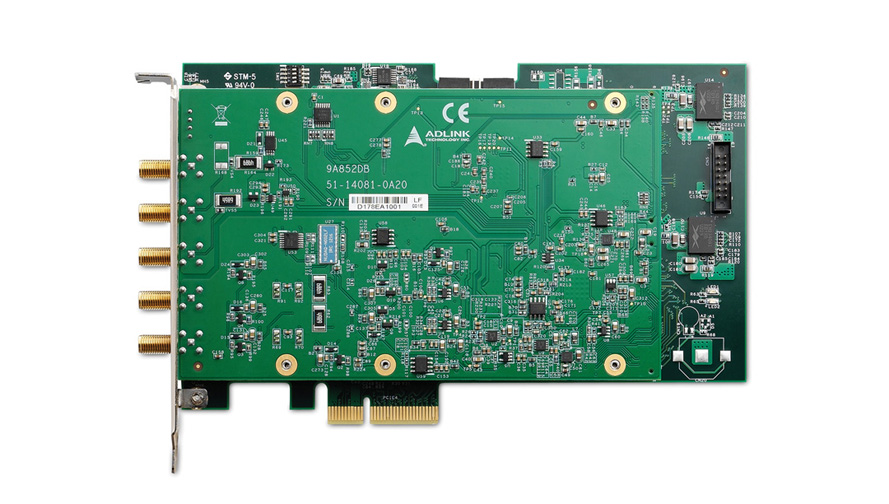

PCIe-9852 - 2-CH, 14-bit, 200MS/s High Speed PCI Express Digitizer
by ADLINK
|
|
|
|
- PCI Express specification Rev. 2.0 compliant
- 2 simultaneously analog inputs, up to 200 MS/s sampling rate, and High resolution 14-bit ADC
- Up to 90 MHz bandwidth for analog input
- 1 GB onboard storage memory
- Programmable input voltage range of ±0.2 V, ±2 V, or ±10 V
- One external digital trigger input and one external trigger output
- Full auto-calibration
- Support signal averaging feature
|
|
|
The ADLINK PCIe/PXIe-9852 is a 2-CH 14-bit 200 MS/s digitizer for high frequency and wide dynamic range signals with an input frequency up to 90 MHz. The 90 MHz bandwidth analog input with 50Ω impedance is designed to receive ±0.2 V, ±2 V, or ±10 V high speed signals. With a PCI Express bus interface and ample onboard acquisition memory up to 1 GB, the PCIe/PXIe-9852 easily manages simultaneous 2-CH data streaming. With high speed and high linearity 14-bit A/D converters and high stable onboard reference, the PCIe/PXIe-9852 provides both high accuracy and high dynamic performance, making it ideal for applications requiring high-speed data acquisition, such as optical fiber and LIDAR testing, and video signal analysis.
|
|
