PCIe-to-PXI Expansion Kit - PCI Express-to-PXI expansion kit, including PCIe-8560, PXI-8565 and one 3m expansion cable.
by ADLINK
|
|
|
|
- Direct PC control of PXI/CompactPCI systems
- Multi-chassis configurations for PXI/CompactPCI
- Up to 2 PCI segments from single 8570
- PCI local bus specifications Rev. 2.2 compliant
- PCI to PCI bridge architecture specifications Rev. 1.1 compliant
- PXI specifications Rev2.0 compliant
- Up to 64-bit, 66 MHz PCI bus expansion
- StarFabric link performance; 528 Mbytes/s peak (64-bit, 66 MHz PCI), and 132 Mbytes/s peak (32-bit, 33 MHz PCI)
|
|
|

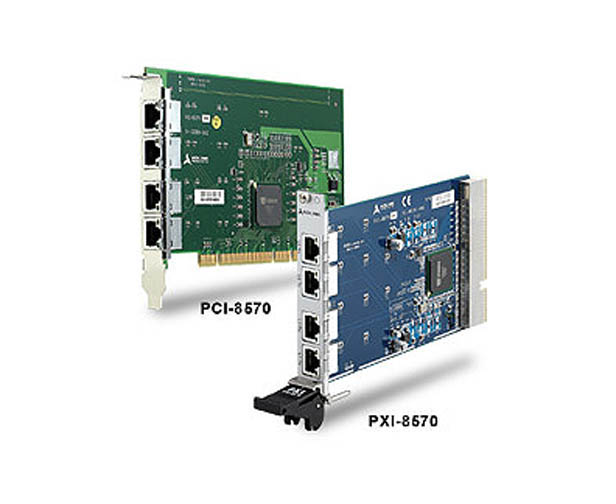

The ADLINK PCI-8570 and PXI-8570 expand the capabilities of PCI by providing high level of scalability and reliability to PCI based system. Using StarGen??s StarFabric technology, the system expansion sets provide a low latency, high throughput path to PCI slots in an expansion chassis. In addition, the single PCI- 8570 (or PXI-8570) could expand to 2 PCI segments, resulting in controlling 2 PXI/CompactPCI chassis with a single controller at lower cost.
|
|
