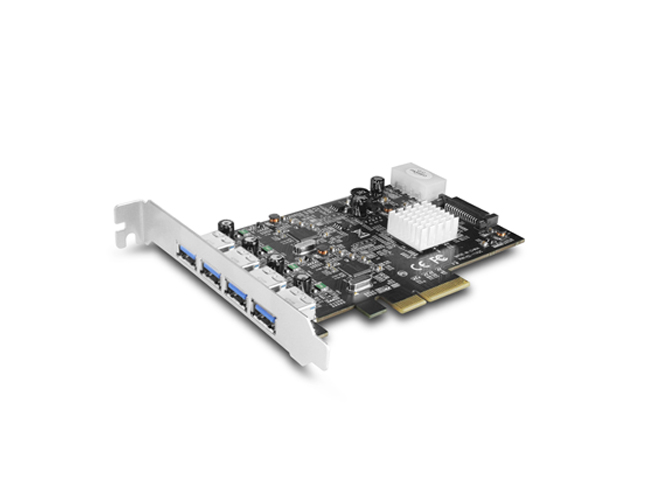

UGT-470-2C - Dual Chip 4-Port Dedicated 10Gbps USB 3.1 Gen 2 PCIe Host Card
by Vantec
|
|
|
|
- Support PCI-Express 2.0 specifications using x4 Connection for faster and wider lanes for speed.
- Provides 2 dedicated USB 3.1 chip for work that requires super-fast data transfer
- Support 10Gbps per chip, with 2 chip to get a total theoretical bandwidth of up to 20Gbps
- Support USB Battery Charging Specification Revision 1.2 for quick smart charge.
- Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0 for compatibility to market standard.
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices for backward compatibility with both old and new devices
- Conveniently built-in LP4 and SATA power connector for receiving extra power from system power supply.
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
- Support UASP Devices on all 4 ports for extra boost in speed.
- Support Windows 7,8.1,10
| Mfg SKU # : | UGT-PCE470-2C |
|
|
|
The Vantec Dual Chip 4-Port Dedicated 10Gbps USB 3.1 Gen 2 PCIe Host Card is design to offer the best USB 3.1 performance possible. This unique design with 2 dedicated USB 3.1 chips provides 2 fast lanes with the maximum bandwidth. With two chips, you can have a total theoretical speed of 20Gbps; this translates in to superfast file transfer and work done. This Dual chip Host card incorporate UASP technology with the aid of the latest OS and UASP devices will further enhances and put the speed into hyper drive. This card comes with additional features, like support for USB Battery Charging specification, Intel XHCI Compliant, PCIe 2.0 x4 interface, built in power connection for LP4/SATA and backward compatibility to all your other slower USB devices.
Model: UGT-PCE470-2C
Device Support: USB 3.1 Type A (backward compatible with USB 3.0/2.0/1.1)
Ports: 4, USB 3.1 Type A ports
Bus Technology: PCI-Express x4
Power connector: 1 –LP4 or SATA power connector
Dimension: 5.0 x 3.5 x 0.8 inches / 128 x 88 x 20 mm
System Requirements:
PCI-Express x4, x8 or x16 slots
Microsoft Windows 7,8.1,10
USB 3.1 devices preferred to get maximum speed
What’s Included: Dual Chip 4-Port Dedicated 10Gbps USB 3.1 Gen 2 PCIe Host Card, Driver CD, Quick Installation Guide
|
|
|
|
