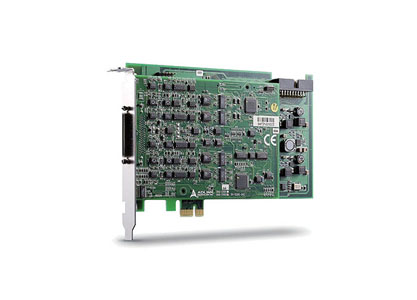

DAQe-2502 - DAQ-2502 express version. by ADLINK

DAQe-2502 - DAQ-2502 express version.

Write a review Write a review
  • x1 lane PCI Express┬« Interface
  • Hardware-based arbitrary waveform generation
  • Onboard 8 k-sample D/A FIFO (DAQe-2501)
  • Programmable bipolar or unipolar analog output ranges on per channel basis
  • Programmable internal or external reference sources on per channel basis
  • 8-CH 400 kS/s 14-bit single-ended analog inputs (DAQe-2501)
  • 24-CH TTL digital input/output
  • 2-CH 16-bit general-purpose timer/counter
Mfg SKU # : DAQe-2502
Our Price : $1,194.00
Stock :Call for Availability
Quantity :
ADLINK DAQe-2500 series are high-speed and high-performance analog output multi-function DAQ PCI EXpress cards. The devices are able to update up to 8-CH, 12-bit analog outputs simultaneously at sustaining 1 MS/s. The reference sources and the output polarities are programmable on per channel basis, combining with the multiplying DAC architecture, ADLINK DAQe-2500 series DAQ cards can generate complex modulated analog signals. The hardware-based arbitrary waveform generation frees the CPU intervention even when all analog outputs are updating at full speed, and the lengths of waveforms are only limited by the system memory.
