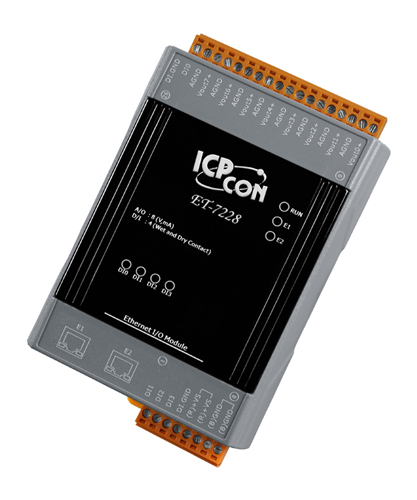

ET-7228 - 8 Channel Analog Output
by ICP DAS
|
|
|
|
Modbus TCP based Ethernet I/O Module with 8 Analog Outputs. Current and Voltage Output Types Include: +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA. Supports Operating Temperatures of -25°C to 75°C (-13°F ~ +167°F).
|
|
|
The ET-7228 is a multifunctional module with 8 channels of analog output and 2 Ethernet ports for daisy chain connection. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper. The ET-7228 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation. Supporting Modbus TCP, it is easy to integrate with your SCADA system as well.
- 2 Ethernet Ports for Daisy Chain Network. Saves Cabling Cost.
- Built-in Web Server For Easy Configuration
- Web HMI Interface. No Programming Skills Needed
- Support for both Modbus TCP and Modbus UDP Protocols. Easy to Integrate with SCADA System and other I/O.
- Communication Security Guaranteed.
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- I/O Pair Connection Supported
- Built-in I/O, Analog Output: 8 Channels
|
| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
|
| Ethernet Port |
2 x RJ-45, 10/100 Base-TX, Switch Ports |
| PoE |
- |
| Protocol |
Modbus/TCP, Modbus/UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 second), Communication (Programmable) |
| LED Indicators |
| for System Running |
Yes |
| for Ethernet Link/Act |
Yes |
| for DI/DO status |
Yes |
| for PoE Power |
- |
| 2 Way Isolation |
| Ethernet |
1500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
12 ~ 48 VDC |
| Powered from Terminal Block |
12 ~ 48 VDC |
| Consumption |
6 W |
| Mechanical |
| Dimensions (L x W x H) |
120 mm x 76 mm x 38 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
| Analog Output |
| Channels |
8 |
| Type |
+0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) |
| Individual Channel Configuration |
Yes |
| Resolution |
12-bit |
| Accuracy |
+/-0.1% of FSR |
| Voltage Ouput Capability |
10 V @ 10 mA |
| Current Load Resistance |
500 Ω |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
|
