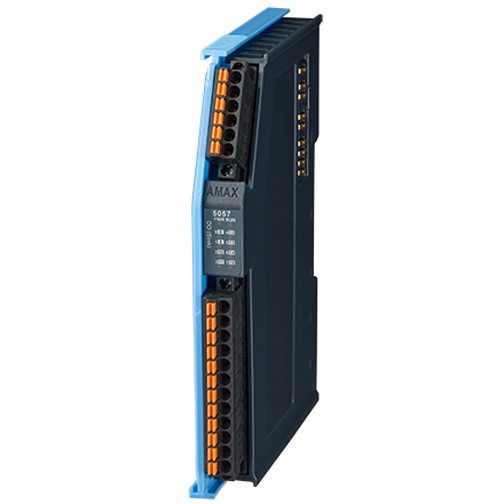

Advantech AMAX-5057SO-A2
16-ch Source-type Digital Output EtherCAT Slice IO Module
- Channels:16 (Source Type)
- Voltage Rating:10~30VDC
- Rated Current Output:0.5A per channel atsignal "1"
- Leakage Current:10 μA per channel atsignal "0"
- Output Delay:From logic level 0 to 1:150μs; From logic level 1 to 0: 2ms
