| CPU |
DM&P Vortex86EX2 Processor, Master 533 MHz Slave 400MHz |
| Memory |
512MB/1GB DDRIII Onboard |
| Storage |
32MB SPI Flash/2GB SLC eMMC (Option) |
| LCD Display |

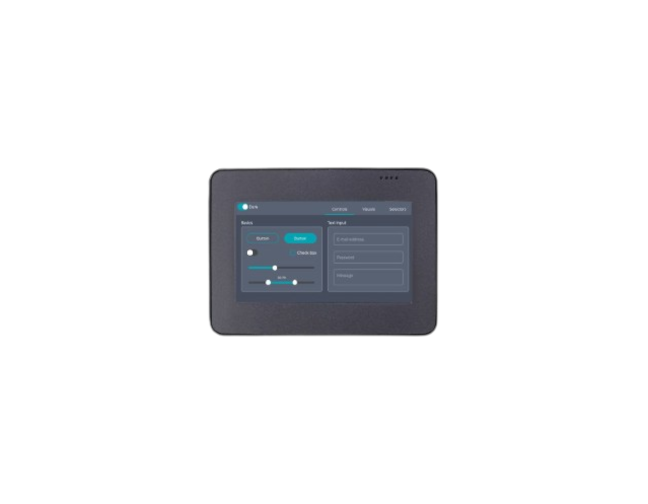

4.3 inch TFT 800 x 480 Resolution LCD with resistive touchscreen |
| LAN |
1Gbps Ethernet RJ45 x1
10/100Mbps Ethernet RJ45 x2 for EtherCAT |
| I/O Connector |
2.0mm 6-pin wafer for Power DC
2.0mm 6-pin header for GPIO x1
1.25mm 4-pin wafer for Line-Out x1
USB 2.0 Host x1
RJ45 x3 |
2.0mm 4-pin wafer for RS485 x1
2.0mm 3-pin header for COM1(TTL) x1
1.25mm 2-pin header for RTC Battery x1
Micro USB (Type-B) x1 |
| Protocol |
EtherCAT |
| Control Cycle Time |
125 µs (min.) |
| Power Connector |
6-pin Power Input /Output |
| Power Requirement |
+19 to +50VDC Power Input (Typ. +24VDC) |
| Operating Temperature |
-20 to +70°C/-40 to +85°C (Option) |
| Dimension |
129.07 x 95.02 x 29.6mm |
| Weight |
290g |
| Software Support |
86Duino Coding IDE 500+(The environment is written in Java and based on Arduino IDE,
Processing, DJGPP, and other open source software) |
