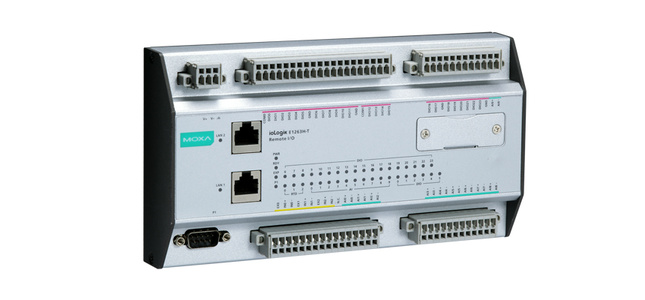

Moxa ioLogik E1263H-T - Ethernet remote I/O with 2-port Ethernet switches, 24 DIOs, 10 AIs and 3 RTDs, -40 to 75 Degree C oper
by MOXA

IEC 60945 approval for harsh offshore environments
Wide operating temperature: -40 to 75°C (-40 to 167°F)
Active communication with patented MX-AOPC UA Server and Active OPC Server
2-port Ethernet switch for daisy-chain topologies
User-defined Modbus/TCP addressing
Friendly configuration via web browser

Description
Specification
Datasheet

Rugged Ethernet Remote I/O: The ioLogik E1200H Series for Harsh Environments

Industry-Proven Rugged Design

Installation of remote Ethernet I/O in offshore environments is a real challenge. It is critical to find devices properly designed for protected, safe use in these environments. Moxa’s ioLogik E1200H series with IEC 60945 certifications fulfills the need for devices suitable to such demanding industrial applications. Compactly packaged in a metal housing, this rugged hardware keeps operating in temperatures ranging from -40 to 75°C, meeting the stringent demands of IEC 60945 for harsh offshore applications.

Daisy-Chain Topology Reduces Deployment Costs

Thanks to its two embedded Ethernet switch ports, the ioLogik E1200H remote Ethernet I/O allows you to create daisy-chain topologies for easy cabling. In distributed Ethernet data acquisition applications, panels, units, and cabinets are often located at remote sites where space is limited. The daisy-chain capability of the ioLogik E1200H series allows ioLogik E1200H units to connect in series either to each other or to other nearby Ethernet devices, drastically saving on both space and wiring costs.

Application: Offshore Remote Monitoring

Have you ever wondered where to find a rugged remote Ethernet I/O device to offshore facilities? You need something with the ability to withstand extreme weather conditions, wide temperature changes and that can be used in hazardous environments. With Moxa’s ioLogik E1200H, you get a robust design that will meet your most stringent demands, ensuring your remote data acquisition remains reliable, consistent, and safe.

Common Specifications
• LAN
Ethernet	2 x 10/100 Mbps switch ports, RJ45
Protection	1.5 kV magnetic isolation
Protocols	Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP
• Power Requirements
Power Input	24 VDC nominal, 12 to 48 VDC
• Physical Characteristics
Wiring	I/O cable max. 14 AWG
Mounting	DIN rail (standard), wall (with optional kit)
• Environmental Limits
Operating Temperature	-40 to 75°C (-40 to 176°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Standards and Certifications
EMI	EN 61000-3-2; EN 61000-3-3; EN 61000-6-4; FCC Part 15, Subpart B, Class A
EMS	EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Green Product	RoHS, CRoHS, WEEE
Note	Please check Moxa’s website for the most up-to-date certification status.
• Warranty
Warranty Period	5 years
• Serial Communication
Interface	1 x RS-232/422/485, software selectable (9-pin D-Sub male)
Serial Line Protection	4/8 kV ESD for all signals
• Serial Communication Parameters
Parity	None
Data Bits	8
Stop Bits	1
Flow Control	None
Baudrate	2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Protocol	Modbus/RTU
E1263H Specifications
• Inputs and Outputs
Analog Inputs	10 channels
RTD Inputs	3 channels
Configurable DIOs	24 channels
Isolation	3K VDC or 2K Vrms
• Analog Input
Type	Differential input
Resolution	16 bits
I/O Mode	Voltage/Current
Input Range	0 to 10 V, 0 to 20 mA, 4 to 20 mA
Accuracy	• ±0.1% FSR @ 25°C • ±1.0% FSR @ -40 and 75°
Sampling Rate (all channels)	12 samples/sec
Input Impedance	10M ohms (minimum)
Built-in Resistor for Current Input	120 ohms
• Digital Input
Sensor Type	Wet Contact (NPN or PNP), Dry Contact
I/O Mode	DI or Event Counter (channel 0–7)
Dry Contact	• On: short to GND • Off: open
Wet Contact (DI to GND)	• On: 0 to 3 VDC • Off: 10 to 30 VDC
Common Type	• 12 points per COM
Counter Frequency	250 Hz
Digital Filtering Time Interval	Software selectable
• RTD Inputs
Input Type	• PT100 (3-wire): -50 to 150°C, 0 to 100°C, 0 to 200°C, 0 to 400°C, -50 to 200°C • PT1000 (3-wire): -50 to 200°C
Sampling Rate	12 samples/sec (all channels)
Resolution	0.5°C
Accuracy	• ±0.1% FSR @ 25°C • ±1.0% FSR @ -40 and 75°C
Input Impedance	625K ohms
• Digital Output
Type	Sink
I/O Mode	DO or Pulse Output (channel 0–7)
Pulse Output Frequency	500 Hz
Over-voltage Protection	45 VDC
Over-current Protection	2.6 A (4 channels @ 650 mA)
Over-temperature Shutdown	175°C (typical), 150°C (min.)
Output Current Rating	200 mA per channel
• Power Requirements
Power Input	24 VDC nominal, 12 to 48 VDC
Power Consumption	425 mA @ 24 VDC
• Physical Characteristics
Dimensions	204 x 113 x 36.3 mm ( 8.03 x 4.45 x 1.43 in)
Weight	945 g
