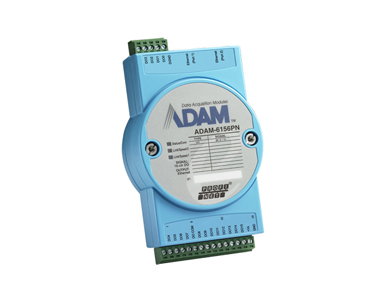

ADAM-6156PN-AE - 16-CH ISOLATED DO PROFINET MODULE

Advantech ADAM-6156PN-AE - 16-CH ISOLATED DO PROFINET MODULE
by Advantech

PROFINET protocol
16-ch digital output
Normal output current: 0.1 A (per channel)
2 x RJ-45 LAN (daisy chain)

Description
Specification
Datasheet

ADAM-6156PN-AE

Equipped with the PROFINET protocol, the ADAM-6100PN series allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chains also provide a more scalable system and helping improve scalability and improving resistance against interference common in factory settings. Their isolated design prevents the ADAM-6100 series from breaking down and helps resist harmful field interference.

Relay Output

Channels: 6 Form C

Switching Capacity and Lifetime of the Contact (For Resistive Load)

VDE: 30,000 operations (5 A @ 250 VAC, 10 operations/ minute at 85° C) 70,000 operations (5 A @ 30 VDC, 10 operations/ minute at 85° C)
UL: 60,000 operations (5 A @ 250 VAC) 100,000 operations (5 A @ 30 VDC)
Mechanism: 20,000,000 operations (no load, 300 operations/min)
Breakdown Voltage: 500 VAC (50/60 Hz)
Contact Resistance: 30 mΩ (maximum)
Insulation Resistance: 1 GΩ (minimum) at 500 VDC
