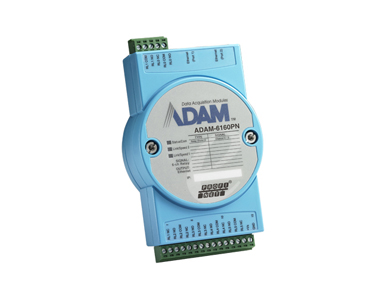

Advantech ADAM-6160PN-AE - 6-CH RELAY PROFINET MODULE
by Advantech
|
|
|
|
- PROFINET protocol
- 5 Form C and 1 Form A/B relay output
- Breakdown voltage: 500 VAC (50/60 Hz)
- 2 x RJ-45 LAN (daisy chain)
- Contact Rating: 5 A @ 250 VAC; 5 A @ 30 VDC
|
|
|
ADAM-6160PN-AE
Equipped with the PROFINET protocol, the ADAM-6100PN series allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chains also provide a more scalable system and helping improve scalability and improving resistance against interference common in factory settings. Their isolated design prevents the ADAM-6100 series from breaking down and helps resist harmful field interference.
General
- LAN: 10/100Base-T(X)
- Power Consumption: 4.5 W @ 24 VDC
- Connectors: 2 x RJ-45 LAN, (Daisy Chain); Plug-in screw terminal block (I/O and power)
- Watchdog: System (1.6 second)
- Power Input: 10 ~ 30 VDC
Protection
- Over Voltage Protection: ±35 VDC
- Isolation Protection: 2,500 VDC
- Power Reversal Protection
Environment
- Operating Temperature: -10 ~ 70°C (14 ~ 158°F)
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Operating Humidity: 20 ~ 95% RH (non-condensing)
- Storage Humidity: 0 ~ 95% RH (non-condensing); 0 ~ 95% RH (non-condensing)
Relay Output
- Channels: 5 Form C and 1 Form A
- Contact Rating: 250 VAC @ 5A; 30 VDC @ 5A
- Max. Switching Voltage: 400 VAC; 300 VDC
- Breakdown Voltage: 500 VAC (50/60Hz)
- Max. Breakdown Capacity: 1250 VA
- Frequency of Operation: 360 operations/hour with load; 72,000 operations/hour without load
- Set/Reset Time: 8 ms/8 ms
- Mechanical Endurance: > 15 x 106 operations
- Isolation between Contact: 1000 Vrms
- Insulation Resistance: > 10 GO @ 500 VDC
|
|
|
|
