45MR-2404 - Module for ioThinx 4500 Series, 4 Relays, form A, -20 to 60 Degree C operating temperature by MOXA
|
|
|
- Easy tool-free installation and removal
- 4 Relay Channels
- Built-in LED indicators for IO channels
- Operating temperature range: -20 to 60°C (-4 to 140°F)
|
|
|
Introduction

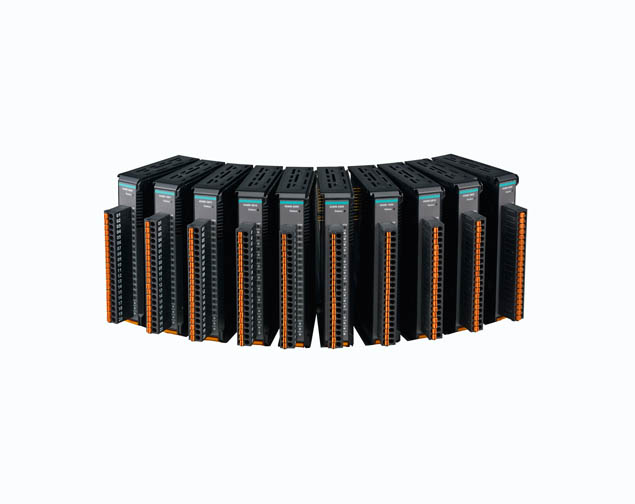

Moxa’s ioThinx 4500 Series (45MR) Modules, 45MR-2404, are available with DI/Os, AIs, relays, RTDs, and other I/O types, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. With its unique mechanical design, hardware installation and removal can be done easily without tools, greatly reducing the amount of time required to set up and replace the modules.
Easy Tool-Free Installation and Removal
The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.
Input/Output Interface
-
Relay Channels
45MR-2404 Series: 4
Relays
-
Connector
Spring-type Euroblock terminal
-
Type
Form A (N.O.) power relay
-
I/O Mode
DO
-
Contact Current Rating
Resistive load: 2 A @ 30 VDC
Resistive load: 2 A @ 250 VAC
-
Relay On/Off Time
10 ms (max.)
-
Initial Insulation Resistance
1000 mega-ohms (min.) @ 500 VDC
-
Mechanical Endurance
5,000,000 operations
-
Electrical Endurance
400,000 operations @ 2 A resistive load
-
Contact Resistance
100 milli-ohms (max.)
Power Consumption
Physical Characteristics
Environmental Limits
-
Operating Temperature
Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
-
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing) The relays of the 45MR-2404 Series may malfunction when operating in high condensation environments below 0°C.
-
Altitude
Up to 4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
-
EMC
EN 55032/24
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Shock
IEC 60068-2-27
-
Vibration
IEC 60068-2-6
Declaration
-
Green Product
RoHS, CRoHS, WEEE
MTBF
|
|
