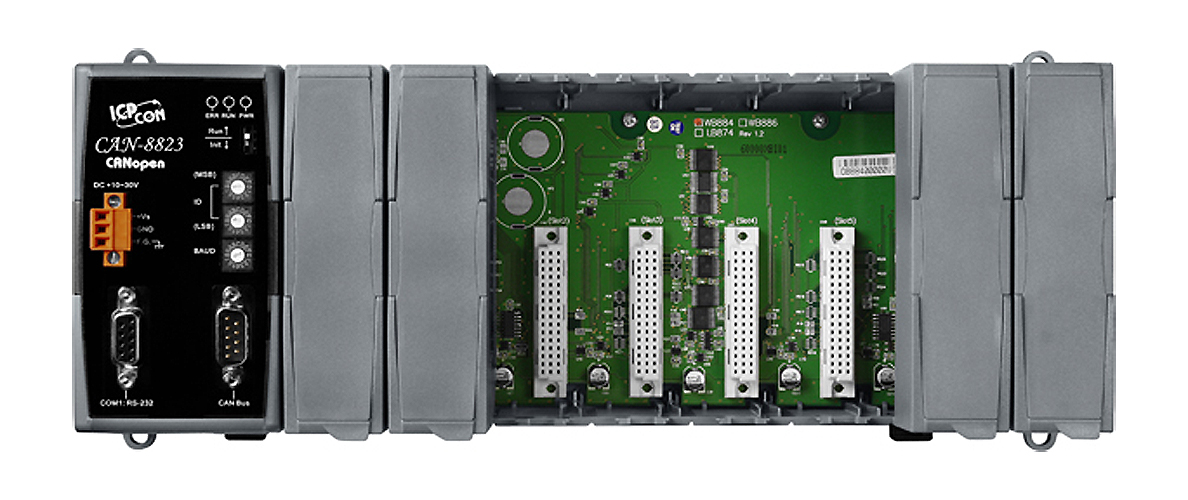

CAN-8823 - CANopen with 8 slot Expansion Rack
by ICP DAS
|
|
|
|
CANopen Remote I/O Unit with 8 I/O Expansions Slots. 80 MHz CPU, 512 KB SRAM. UART RS-232 COM 1 Interface. Has an operating temperature range of -25°C ~ +75° (-13°F ~ +167°F).
|
|
|
Based on the technology of Intelligent Field Bus (CAN Bus), the CAN-8823 are control units which are designed for CANopen protocol slave devices. They have 8 slots for I/O expansion and works with many of ICP DAS USA's DI / AI / DO / AO modules. Following closely after the CANopen specifications of the DS-301 V4.02 and DSP-401 V2.1, the CAN-8823 features dynamic PDO, EMCY object, error output value, SYNC cyclic and acyclic, as well as providing for standardized communication for real-time data processing. This includes SDO (Service Data Object), network management data (NMT message, and Error Control), Time Stamp, Sync Message, and Emergency Message.
The CAN-8823 can be provided with a Utility that for dynamic creation of EDS files. The EDS, based on the CANopen DSP-306, can be compatible with different CANopen master interfaces.
- NMT: Slave
- Error Control: Node Guarding and Heartbeat Producer Protocol
- No. of PDOs: 16Rx, 16Tx
- PDO Modes: Event Triggered, Remotely requested, Cyclic and acyclic SYNC
- PDO Mapping: Available
- No. of SDOs: 1 server, 0 client
- Emergency Message: yes
- CANopen Version: DS0-301 v4.02
- Device Profile: DSP-401 v2.1
- Baud Rate Setting by Rotary Switch: 10K, 20K, 50K, 125K, 250K, 500K, 800K, and 1Mbps
- Node ID setting by Rotary Switch: yes
- Produce EDS file Dynamically: yes
- ERR, RUN, PWR LED: yes
| Hardware |
| CPU |
80186, 80 MHz or compatible |
| SRAM/Flash/EEPROM |
512 KB / 512 KB / 2 KB |
| NVRAM |
31 bytes (battery backup, data valid for up to 10 years) |
| RTC (Real Time Clock) |
Yes |
| Watchdog |
Watchdog IC |
| Expansion Slot |
8 slots |
| CAN Inteface |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Transceiver |
NXP 82C250 |
| Connector |
5-pin screwed terminal block (N/A, CAN_L, CAN_SHLD, CAN_H, N/A) |
| Baud Rate (bps) |
10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (By rotary switch) |
| Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminator Resistor |
Jumper for 120 Ω terminator resistor |
| Specification |
ISO-11898-2, CAN 2.0A |
| Protocol |
CANopen DS-301 ver4.02, DS-401 ver2.1 |
| UART Interface |
| COM 1 |
RS-232 (For configuration) |
| LED |
| Round LED
|
PWR LED, RUN LED, ERR LED |
| Power LED |
| Power Supply |
Unregulated +10 ~ +30 VDC |
| Mechansim |
| Dimensions |
188mm x 312mm x 91mm (W x L x H) |
| Environment |
| Operating Temperature |
-25°C ~ - +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30°C ~ +80°C (-22°F ~ +176°F) |
| Humidity |
10 ~ 90% RH, Unit with 8 Expansions |
|
|
