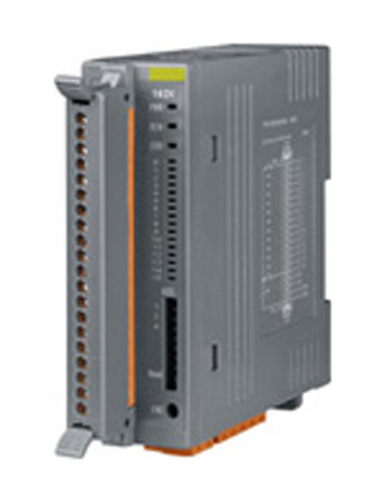

| Digital Input |
| Input Channel |
16 (Sink/Source) |
| Input Type |
Isolation, One Common for All Digital Inputs |
| On Voltage Level |
+3.5V ~ 30V |
| Off Voltage Level |
+1V max |
| Input Impedance |
3K Ohms |
| Isolation Voltage |
3750Vrms |
| Interface |
| 2-wire cabling |
CPEV 0.9 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer distance |
Max. 400m
Max. 100m for "H" version |
| LED Indicators |
Power, Communication Run, Communication Error, Terminal
resistor, Digital input |
| Transfer speed |
250Kbps
1Mbps for "H" version |
| Cyclic scan time |
2.88ms
0.72ms for "H" version |
| Connection |
Removable 20-pin Terminal Block |
| Power |
| Input Voltage Range |
+10 ~ +30VDC (Non-isolation) |
| Power consumption |
2.4W Max |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Connection |
5-Pin Removable Terminal Block |
| Mechanical |
| Case |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions |
32.5mm x 110mm x 102mm (W x H x D) |
| Installation |
DIN-Rail |
| Mechanical |
| Operating Temperature |
-25 °C~ +75°C |
| Storage Temperature |
-30 ~ +85°C |
| Ambient Relative Humidity |
10% to 90% non-condensing |
