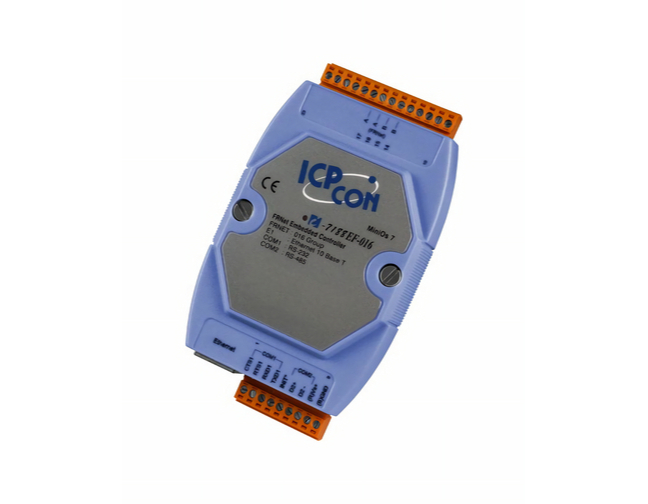

ICP DAS I-7188EF-016 - FRnet Equipped I-7188 Embedded Ethernet Controller for use with High Speed Digital Data Acquisition with
by ICP DAS
|
|
|
|
I-7188EF-016_SUMMARY.html
- High speed deterministic I/O control
- Real I/O synchronization capability
- Non-protocol communication
- Easy used memory-mapping I/O programming
- One FRnet port to expand distributed I/O module
- Two wire cabling
|
|
|
I-7188EF-016_DESCRIPTION.html
The I-7188EF-016 is an uPAC with isolated FRnet, Ethernet, RS-485 and RS-232 ports. I-7188EF-016 is designed to
make that the Host PC easily access the FRnet I/O module via Ethernet. I-7188EF-016 controls the distributed FR-2000 and
FR I/O module via FRnet, and provides the Modbus and DCON protocol for HOST PC to access these FR I/O channels via
Ethernet.
I-7188EF-016.html
| System |
| CPU |
80188-40 or compatible |
| EEPROM |
2048 bytes (8 blocks, each block contains 256 bytes)
Data retention > 100 years
1,000,000 erase/write cycle
|
| SRAM |
512Kb |
| FLASH ROM |
512Kb
Erase unit is one sector (64Kb)
100,000 erase/write cycles
|
| Programs can be download from COM1 |
| Built-in 64-bit hardware unique serial number |
| Communication |
| Ethernet Port |
10M/10BaseT, RJ-45 Port |
| COM Port |
COM driver support interrupt 1K QUEUE Input Output buffer
COM1: RS232 (CTS, RTS, RXD, TXD, GND)
COM2: RS485 (Data+, Data-)
|
| FRnet Port |
Communication speed : 250Kbps
Scan time : 128 input/128 output points @ 2.88 mS (I-7188EF-016L)
Communication distance : Max. 400m (I-7188EF-016L)
Cable: CPEV 0.9 (2P Twisted-pair wire)
Distributed I/O modules
Max. 8 SA modules, FR-2053 (16 DI)
Max. 8 RA
modules, FR-2057 (16 DO)
Each module of FR-2053/FR2057 module is one group.
|
Built-in WatchDog Timer (0.8
seconds)
Built-in Power Protection and Network Protection Circuit
Real Time Clock
|
Year-2000 compliant
Displays seconds, minutes, hours,
date of the month
Displays month and year from 1980 to 2079
NVSRAM: 31 bytes, battery backup,
data valid for up to 10 years |
| Display |
| 7-segment LED: 5-digit (for I-7188EFD only) |
| Power |
| Power requirement |
10 - 30 VDC(non-regulated) |
| Power consumption |
2.0W for I-7188EF-016
3.0W for 7188EFD-016 |
| General Environment |
| Operating temperature |
-25C to +75C |
| Storage temperature |
-40C to +80C |
| Humidity |
Operating humidity: 10% ~90% RH, non-condensing
torage humidity : 5%~95% RH, non-condensing
|
| Mechanical |
| Dimensions ( W x H x D ) |
123mm x 72mm x 33mm |
| Installation |
DIN-Rail, Stack Mounting |
|
|
|
|
